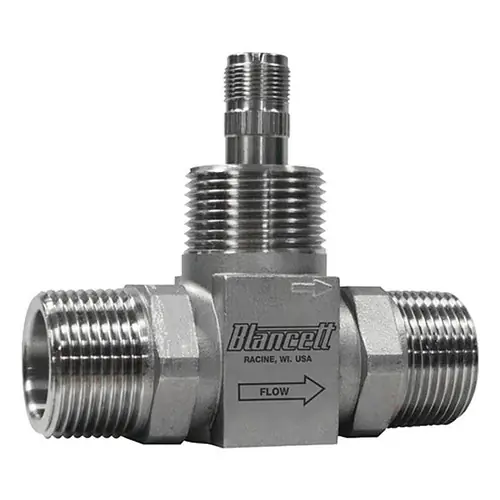

Badger Meter Blancett® B1100 Turbine Flow Meters

Description

The Model 1100 turbine flow meter is designed to withstand the demands of the most rigorous flow measurement applications and is an ideal meter for liquid flow measurement on or off the oil field. The turbine flow meter maintains measurement accuracy and mechanical integrity in the corrosive and abrasive fluids commonly found in oil field water flood projects, concrete production & consolidation, utility water treatment & distribution, oil & gas, refining, chemical & petrochemical and process & general industrial applications. When paired with a Blancett® flow monitor, the turbine meter meets a wide range of measurement requirements. This is ideal for applications such as pipelines, production/ injection fields, in-situ mining operations, offshore facilities, and other industrial applications. Note: B1100 also available in flanged connections call a JME Sales Specialist at 800-333-3331 for details.

Features

Offers accurate and repeatable flow measurement in ranges from 0.6 to 5000 GMP (20 to 171,000 bpd)
Cost-effective solution for turbine flow meter applications
316 stainless steel construction offers long service life in severe operating environments
NIST traceable calibration
Installation in pipe sizes from 1/2 to 10 in. Can integrate electronically with a Blancett® flow monitor
The Model 1100 turbine meter is simple to install and service. It operates in any orientation (horizontal to vertical) as long as the “flow direction” arrow is aligned in the same direction as the actual line flow.
For best performance, the flow meter should be installed with a minimum of 10 diameters upstream straight pipe length and 5 diameters downstream straight pipe length.

Specifications

316 Stainless steel body
CD4MCU stainless steel rotor
Tungsten carbide rotor shaft
316 stainless steel rotor support
-150° to 350° F(-101°C to 177°C) operating temperature
800 or 5000 PSI
10:1 turndown ratio
± 1 % accuracy
±0.1% repeatability
Water- NIST traceable calibration

Part NumberMaPSIStrainer MeshFlow RangesK-Factor Pulse/GalEnd to End Length

B110-375
5000 PSI
60
0.6-3 GPM
18,000
4 in.

B110-375-1/2
5000 PSI
60
0.6-3GPM
18,000
3 in.

B110-500
5000 PSI
60
0.75-7.5 GPM
13,000
4 in.

B110-500-1/2
5000 PSI
60
0.5-7.5 GPM
13,000
3 in.

B100-750
5000 PSI
60
2-15 GPM
3,300
4 in.

B110-750-1/2
5000 PSI
60
2-15 GPM
3,3000
3 in.

B110-875
5000 PSi
60
3-30 GPM
3,100
4 in.

B111-110
5000 PSI
40
5-50 GPM
870
4 in.

B111-115
5000 PSI
20
15-180 GPM
330
6 in.

B111-120
5000 PSI
20
40-400 GPM
52
10 in.

B111-121
5000 PSI
20
15-180 GPM
330
6 in.

B111-130
800 PSI
10
60-600 GPM
57
12-1/2 in.

B111-140
800 PSI
10
100-1200 GPM
29
12 in.

B111-160
800 PSI
4
200-2500 GPM
7
12 in.

B111-180
800 PSI
4
350-3500 GPM
3
12 in.

B111-200
800 PSI
4
500-5000 GPM
1.6
12 in.
