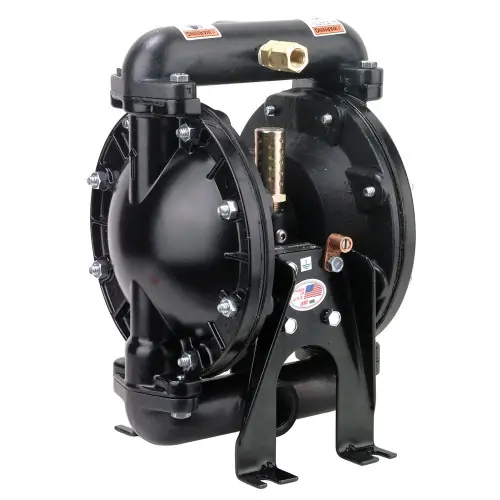

ARO U/L Approved 1 in. NPT Aluminum Air Diaphragm Pump w/ FKM Diaphragms, Acetal Balls & PVDF Seats

Description

ARO’s UL listed AODD pumps are designed specifically for high volume transfer, bulk-unloading, or fueling applications. These pumps meet UL 79 specification code and are compatible with gasoline, aviation fuel, diesel fuel, fuel oil and kerosene.
Features

Includes a pressure relief valve (per UL Specification 79) which restricts the fluid outlet pressure to less than 50 PSI
Designed specifically for dispensing petroleum-based fuel
Compatible with gasoline, diesel fuel, kerosene, aviation fuel, fuel oil and unleaded fuel
Used for high-volume transfer, bulk-unloading or refueling applications
Meet UL-79 specification code

Model
#: 650717-C

Specifications

Ratio: 1:1
Maximum Flow: 29 GPM (110 LPM)
Displacement Per Cycle: 0.16 GAL (60 L)
Air Inlet: 1/4″ NPTF (6.3 mm)
Fluid Inlet / Outlet: 1″ NPTF
MaOperating Pressure: 50 PSI (3.4 BAR)
Suspended Solids MaDia.: 1/8″ (3.2 mm)
Sound Level (70 PSI, 60 Cycles/Min): 64.5 db(A)
Center Body: Aluminum
Fluid Cap, Manifold Material: Aluminum
Hardware Material: Steel
Seat Material: PVDF (Kynar)
Ball Material: Acetal
Diaphragm Material: Viton

Downloads
Product Manual (PDF Download)
