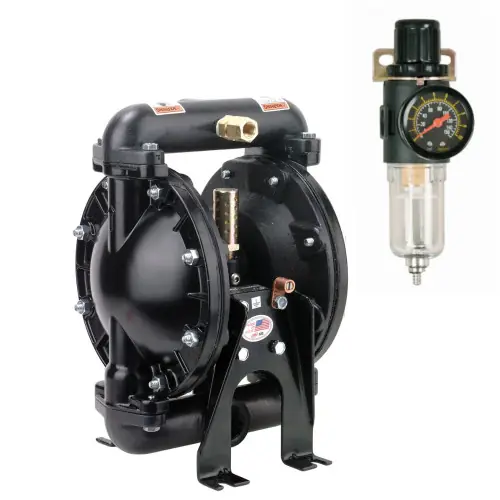

ARO U/L Approved 1 in. NPT Aluminum Air Diaphragm Pump w/ FKM Diaphragms, Acetal Balls & PVDF Seats with FREE Filter/Regulator

Description

ARO U/L Approved 1 in. NPT Aluminum Air Diaphragm Pump w/ FKM Diaphragms, Acetal Balls & PVDF Seats with FREE Filter/Regulator ARO’s UL listed AODD pumps are designed specifically for high volume transfer, bulk-unloading, or fueling applications. These pumps meet UL 79 specification code and are compatible with gasoline, aviation fuel, diesel fuel, fuel oil and kerosene. Free Filter/Regulator: Lubeworks AFR Series 1/4 in. FNPT Air Filter & Regulator w/ Pressure Gauge The AFR series filter and regulator combo from Lubeworks adopts novel vane design with high division efficiency and differential pressure discharge device. It can discharge water automatically. The regulator valve adopts balanced inlet structure with the advantages of stable pressure, high precision, and quick reaction. Female threaded (FNPT). Pressure Range: 7.25 – 123.28 PSI (0.05 – 0.85 mPa) Features Includes a pressure relief valve (per UL Specification 79) which restricts the fluid outlet pressure to less than 50 PSI Designed specifically for dispensing petroleum-based fuel Compatible with gasoline, diesel fuel, kerosene, aviation fuel, fuel oil and unleaded fuel Used for high-volume transfer, bulk-unloading or refueling applications Meet UL-79 specification code Model
#: 650717-C Specifications Ratio: 1:1 Maximum Flow: 29 GPM (110 LPM) Displacement Per Cycle: 0.16 GAL (60 L) Air Inlet: 1/4″ NPTF (6.3 mm) Fluid Inlet / Outlet: 1″ NPTF MaOperating Pressure: 50 PSI (3.4 BAR) Suspended Solids MaDia.: 1/8″ (3.2 mm) Sound Level (70 PSI, 60 Cycles/Min): 64.5 db(A) Center Body: Aluminum Fluid Cap, Manifold Material: Aluminum Hardware Material: Steel Seat Material: PVDF (Kynar) Ball Material: Acetal Diaphragm Material: Viton Downloads Product Manual (PDF Download)
