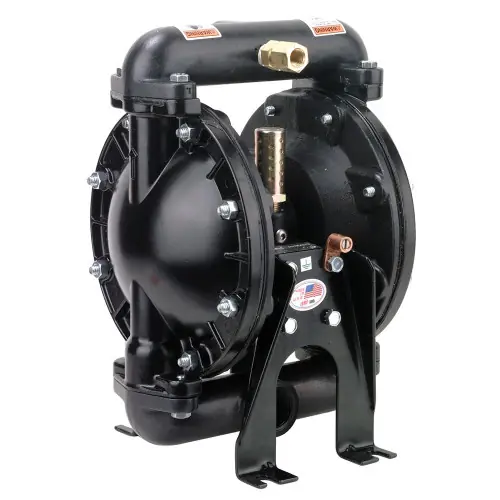

ARO U/L Approved 1 1/2 in. NPT Aluminum Air Diaphragm Pump w/ FKM Diaphragms, Acetal Balls & PVDF Seats

Description

ARO’s UL listed AODD pumps are designed specifically for high volume transfer, bulk-unloading, or fueling applications. These pumps meet UL 79 specification code and are compatible with gasoline, aviation fuel, diesel fuel, fuel oil and kerosene. Features Includes a pressure relief valve (per UL Specification 79) which restricts the fluid outlet pressure to less than 50 PSI Designed specifically for dispensing petroleum-based fuel Compatible with gasoline, diesel fuel, kerosene, aviation fuel, fuel oil and unleaded fuel Used for high-volume transfer, bulk-unloading or refueling applications Meet UL-79 specification code Specifications Ratio: 1:1 Maximum Flow: 75 GPM (283.9 LPM) Displacement Per Cycle: 0.64 GAL (2.42 L) Air Inlet: 1/2″ NPTF (12.7 mm) Fluid Inlet / Outlet: 1 1/2″ NPTF (38.1 mm) MaOperating Pressure: 50 PSI (3.4 BAR) Suspended Solids MaDia.: 1/4″ DIA (6.4 mm) Sound Level (70 PSI, 60 Cycles/Min): 80.5 db(A) Center Body: Aluminum Fluid Cap, Manifold Material: Aluminum Hardware Material: Steel Seat Material: PVDF (Kynar) Ball Material: Acetal Diaphragm Material: Viton Downloads Product Manual (PDF Download)
