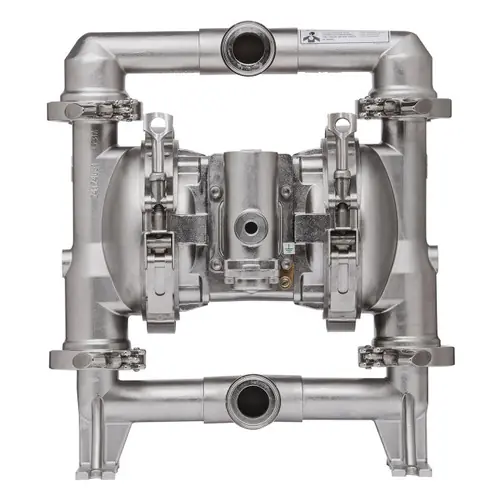

ARO SD Series 1 in. FDA Diaphragm Pumps – 54 GPM – 1 in. – Medical Grade Santoprene

Description

ARO® stainless steel FDA compliant diaphragm pumps deliver safety and quality, as well as industry leading total cost of ownership. By combining the rugged reliability of our EXP pump design with the capacity to handle high volume transfer and dispensing applications, ARO pumps enable you to produce more for your customers Model
#: SD10S-CSS-SMM-A Features 20 to 30 percent better flow rates than other products available on the market Patented “Unstallable” unbalanced air valve design which avoids stalling issues associated with other pumps Exhaust valves that divert cold exhaust air from ice-prone components, which prevents freezing and downtime Ability to pass even large shear-sensitive solids without degradation or heat build-up Ability to run dry (eliminating the risk of pump damage) Gentle pumping action will not froth or separate fluid, improving end-product quality 5-year warranty FDA CFR 21.177 compliant CE, ATEX, and 1935/2004/EC certified Specifications Working Flow: 54 GPM Materials: Center section, wetted parts, seat are 316 SS; Clamps & hardware: 304 SS Fluid Inlet/Outlet: 1″ / 1″ compression clamp Startup Pressure: 25 PSI (1.723 BAR) Dry Suction Lift H20: 16.49 Ft. (5.02 M) Wet Suction Lift H20: 31.4 Ft. (9.57 M) MaOutlet Pressure: 120 PSI (8.3 BAR) Air Inlet: 1/4″ – 18 NPTF Air Inlet Pressure: 120 PSI (8.3 BAR) MaMaterial Inlet Pressure: 10 PSI (0.69 BAR) Displacement Per Cycle @ 100 PSI: 0.258 Gal (0.98 L) MaParticle Size: 1/8″ dia (3.2 mm) MaTemperature Limits: Santoprene: -40°F to 225° F (-40°C to 107° C) PTFE: 40°F to 225° F (4°C to 107° C) Noise Level @ 70 PSI, 60 cpm: 80.6 db(A) Downloads Product Manual (PDF Download) Data Sheet (PDF Download)
