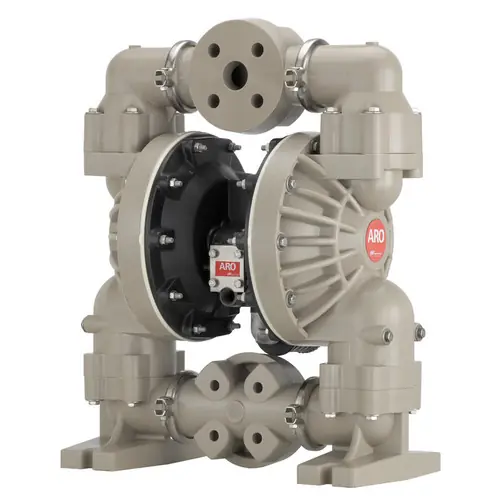

ARO PRO Series 1 1/2 in. Flange PVDF Non-Metallic Air Diaphragm Pump w/ PTFE with Santoprene Backup Diaphragms, PTFE Balls & PVDF Seats

Description

ARO PRO 1″ non-metallic diaphragm pumps are a versatile solution for numerous applications. ARO’s PRO models offer a wide array of material and porting configurations. These pumps are often used for transfer, filling, recirculation and supply in Chemical, Industrial, and Waste/Wastewater treatment markets. Built with robust construction with thick walled injection molded fluid casings and cast iron or aluminum center sections to withstand tough industrial applications.
Model
#: 6661T4-444-C

Features

Motor design delivers optimum air efficiency
ARO’s patented ‘Unbalanced’ air valve ensures no-stall operation for reliable use
Bolted construction for leak-free fluid handling
Easy access to ball checks and fluid caps for maintenance and repairs
Available in Flanged, Threaded, or 3 piece Manifold configurations – Please Call For Details

Specifications

Ratio: 1:1
Maximum Flow: 100 GPM (378.5 LPM)
Displacement Per Cycle: 0.67 Gal (2.54 L)
Air Inlet (Female): 1/2″ – 14 NPTF – 1
Fluid Inlet/Outlet: 1-1/2″ ANSI/DIN Flange
MaOperating Pressure: 120 PSI (8.3 BAR)
Suspended Solids MaDia.: 1/4″ (6.4 mm)
MaDry Suction Lift: 14.0 Ft. (4.27 m)
Sound Level (70 PSI, 60 Cycles/Min): 77.7 db(A)
Center Body: Aluminum

Downloads
Product Manual (PDF Download)
