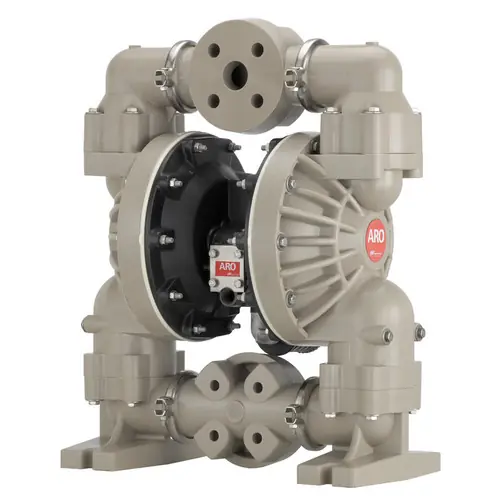

ARO PRO Series 1 1/2 in. Flange Polypropylene Air Diaphragm Pump w/ Santoprene Diaphragms & Balls, Polypropylene Seats

Description

ARO PRO 1″ non-metallic diaphragm pumps are a versatile solution for numerous applications. ARO’s PRO models offer a wide array of material and porting configurations. These pumps are often used for transfer, filling, recirculation and supply in Chemical, Industrial, and Waste/Wastewater treatment markets. Built with robust construction with thick walled injection molded fluid casings and cast iron or aluminum center sections to withstand tough industrial applications. Model
#: 6661T3-3EB-C Features Motor design delivers optimum air efficiency ARO’s patented ‘Unbalanced’ air valve ensures no-stall operation for reliable use Bolted construction for leak-free fluid handling Easy access to ball checks and fluid caps for maintenance and repairs Available in Flanged, Threaded, or 3 piece Manifold configurations – Please Call For Details Specifications Ratio: 1:1 Maximum Flow: 100 GPM (378.5 LPM) Displacement Per Cycle: 0.67 Gal (2.54 L) Air Inlet (Female): 1/2″ – 14 NPTF – 1 Fluid Inlet/Outlet: 1-1/2″ ANSI/DIN Flange MaOperating Pressure: 120 PSI (8.3 BAR) Suspended Solids MaDia.: 1/4″ (6.4 mm) MaDry Suction Lift: 14.0 Ft. (4.27 m) Sound Level (70 PSI, 60 Cycles/Min): 77.7 db(A) Center Body: Aluminum Downloads Product Manual (PDF Download)
