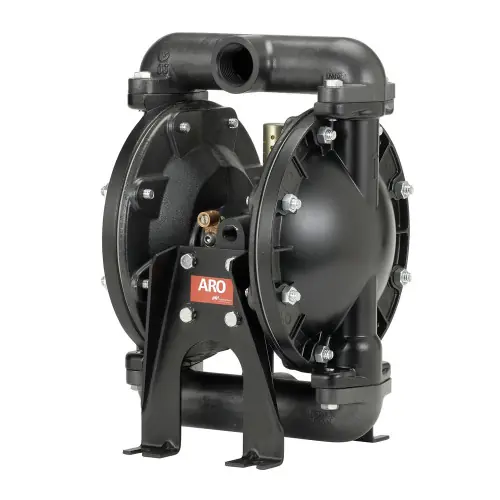

ARO PRO Metallic Series 1 in. NPTF Aluminum Air Diaphragm Pump w/ Santoprene Diaphragms & Balls, Polypropylene Seats

Description

ARO Pro Series air operated diaphragm pumps are ideal for general industrial and OEM installation applications. They can easily pump from clean, light viscosity fluids to corrosive, abrasive medium viscosity fluids and can transfer large particles without damage. Due to their pneumatic motor, they could be used in potentially explosive areas.ARO PRO 1″ metallic diaphragm pumps achieve flow rates of up to 35 GPM and offer a wide array of material and porting configurations. These pumps are often used for transfer, filling, recirculation, and batching in Industrial, Mining, Construction, Chemical, and Petrochemical markets.FeaturesCompact, rugged design allows for easy mobilityMotor design delivers optimum air efficiencyARO’s patented ‘Unbalanced’ air valve ensures no-stall operationBolted construction for leak-free fluid handlingEasy access to ball checks and fluid caps for maintenance and repairsAvailable in aluminum, cast iron or stainless steel to withstand tough chemical applicationsSpecificationsRatio: 1:1Maximum Flow: 35 GPM (133 LPM)Displacement Per Cycle: 0.16 Gal (0.60 L)Air Inlet (Female): 1/4″ NPTFFluid Inlet/Outlet: 1″ NPTFMaOperating Pressure: 120 PSI (8.3 BAR)Suspended Solids MaDia.: 1/8″ (3.2 mm)MaDry Suction Lift: 20.0 Ft. (6.1 m)Sound Level (70 PSI, 60 Cycles/Min): 64.5 db(A)Center Section: AluminumFluid Caps & Manifold Material: AluminumHardware: SteelDownloadsProduct Manual (PDF Download)
