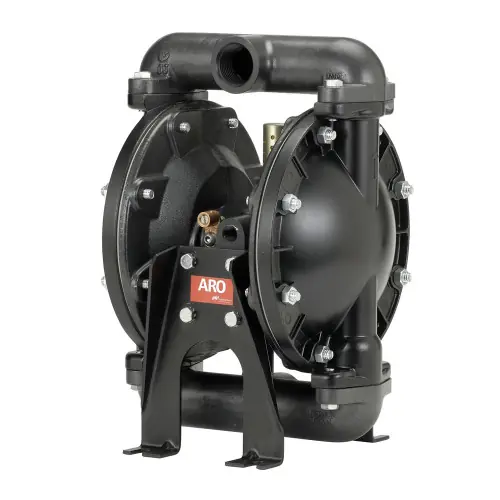

ARO PRO Metallic Series 1 in. NPTF Aluminum Air Diaphragm Pump w/ Nitrile Rubber Diaphragms & Balls, Stainless Steel Seats

Description

ARO Pro Series air operated diaphragm pumps are ideal for general industrial and OEM installation applications. They can easily pump from clean, light viscosity fluids to corrosive, abrasive medium viscosity fluids and can transfer large particles without damage. Due to their pneumatic motor, they could be used in potentially explosive areas. ARO PRO 1″ metallic diaphragm pumps achieve flow rates of up to 35 GPM and offer a wide array of material and porting configurations. These pumps are often used for transfer, filling, recurculation, and batching in Industrail, Mining, Construction, Chemical, and Petrochemical markets. Features Compact, rugged design allows for easy mobility Motor design delivers optimum air efficiency ARO’s patented ‘Unbalanced’ air valve ensures no-stall operation Bolted construction for leak-free fluid handling Easy access to ball checks and fluid caps for maintenance and repairs Available in aluminum, cast iron or stainless steel to withstand tough chemical applications Specifications Ratio: 1:1 Maximum Flow: 35 GPM (133 LPM) Displacement Per Cycle: 0.16 Gal (0.60 L) Air Inlet (Female): 1/4″ NPTF Fluid Inlet/Outlet: 1″ NPTF MaOperating Pressure: 120 PSI (8.3 BAR) Suspended Solids MaDia.: 1/8″ (3.2 mm) MaDry Suction Lift: 20.0 Ft. (6.1 m) Sound Level (70 PSI, 60 Cycles/Min): 64.5 db(A) Center Section: Aluminum Fluid Caps & Manifold Material: Aluminum Hardware: Steel Downloads Product Manual (PDF Download)
