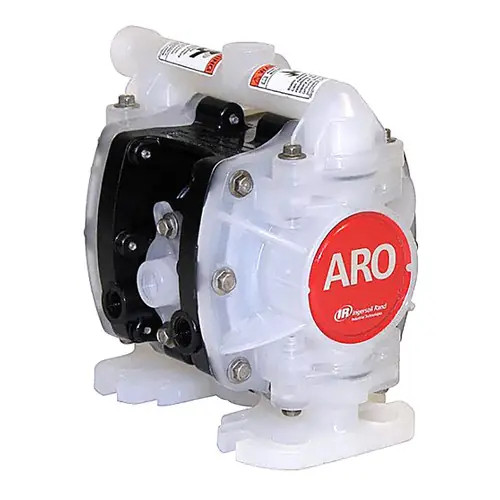

ARO Compact Series 1/4 in. NPT Polypropylene (Multi-Port) Air Diaphragm Pump w/ PTFE Diaphragms & Balls, Polypropylene Seats

Description

Part of ARO’s Compact Series of pumps, the 1/2″ pumps feature a big performance in a small package. They feature flow rates up to 14.4 GPM and wide range of material and porting configurations. Manufactured for complete corrosion resistance – constructed with polypropylene center body, standard stainless steel fasteners, and your choice of Groundable Acetal, PVDF (Kynar) or Polypropylene casing materials. ARO offers a wide selection of corrosion-resistant materials to accommodate even the most difficult applications and a patented stall-resistant air valve that continuously keeps its pump running. The compact size of these ARO Diaphragm pump makes them ideal for OEM applications. Note: Non-Cancellable/Non-returnable

Features

Compact design
360° Mounting versatility when using optional flechecks
Ideal for OEM Applications
Creates a 31-feet of suction lift

Specifications

Double diaphragm pump
Air operated
1/4 in. Inlet
NPT/BSP inlet/outlet connection
Positive displacement
Solids handling: 1/16 in.
Air inlet pressure range: 10- 125 PSI ( 0.69 – 8.6 bar)
MaFlow: 5.3 GPM (20.1 LPM)
Mafluid pressure: 125 PSI (8.6 bar)
Matemperature: 175°F ( 79.4°C)
Noise Level: 62.3 dBa
Housing: Polypropylene
Diaphragm: PTFE
Check Valve: PTFE
Seats: Polypropylene
Hardware: Stainless steel
