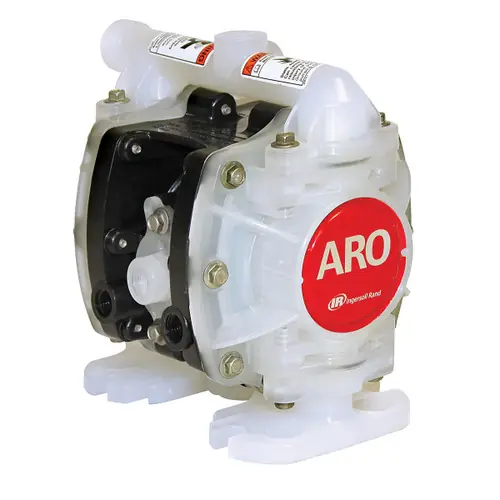

ARO Compact Series 1/4 in. NPT Polypropylene Air Diaphragm Pump w/ Santoprene Diaphragms & Balls, Polypropylene Seats

Description

Part of ARO’s Compact Series of pumps, the 1/4” pumps feature big performance in a compact package. They feature flow rates up to 5.3 GPM (20 LPM) and a wide range of material options. Model
#: PD01P-HPS-PAA-A Features Compact Design 360° Mounting Versatility when using optional flechecks Ideal for OEM Applications Specifications Ratio: 1:1 Maximum Flow: 5.3 GPM (20 LPM) Displacement Per Cycle: 0.019 Gal (0.072 L) Air Inlet (Female): 1/4″ NPTF Fluid Inlet/Outlet Hybrid: Internal Thread: 1/4″ NPTF, External Thread: 3/4″ NPTF MaOperating Pressure: 125 PSI (8.6 BAR) Suspended Solids MaDia.: 1/16″ (1.66 mm) MaDry Suction Lift: 15′ (4.6 m) Sound Level (70 PSI, 60 Cycles/Min): 62.3 db(A) Center Section: Polypropylene Wetted Parts: *Same as Seat Material Hardware: Stainless steel Downloads Product Manual (PDF Download)
