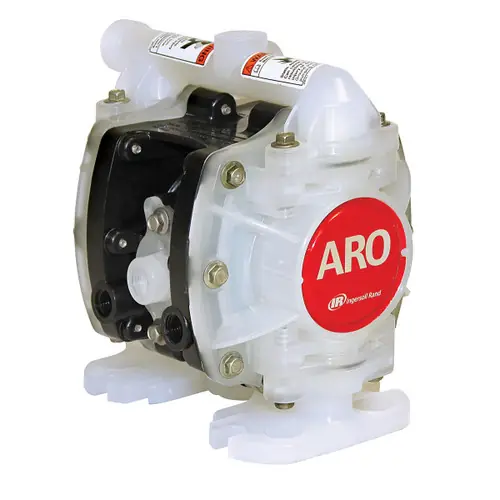

ARO Compact Series 1/4 in. NPT Polypropylene Air Diaphragm Pump w/ PTFE Diaphragms & Balls, Polypropylene Seats

Description

Part of ARO’s Compact Series of pumps, the 1/4” pumps feature big performance in a compact package. They feature flow rates up to 5.3 GPM (20 LPM) and a wide range of material options.
Model
#: PD01P-HKS-KTT-A

Features

Compact Design
360° Mounting Versatility when using optional flechecks
Ideal for OEM Applications

Specifications

Ratio: 1:1
Maximum Flow: 5.3 GPM (20 LPM)
Displacement Per Cycle: 0.019 Gal (0.072 L)
Air Inlet (Female): 1/4″ NPTF
Fluid Inlet/Outlet Hybrid: Internal Thread: 1/4″ NPTF, External Thread: 3/4″ NPTF
MaOperating Pressure: 125 PSI (8.6 BAR)
Suspended Solids MaDia.: 1/16″ (1.66 mm)
MaDry Suction Lift: 15′ (4.6 m)
Sound Level (70 PSI, 60 Cycles/Min): 62.3 db(A)
Center Section: Polypropylene
Wetted Parts: *Same as Seat Material
Hardware: Stainless steel

Downloads
Product Manual (PDF Download)
