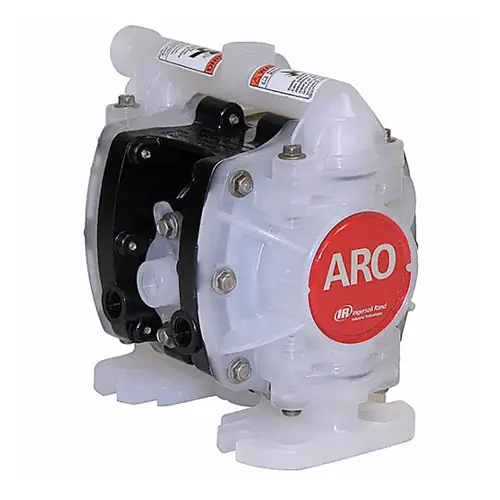

ARO Compact Series 1/4 in. NPT Conductive Polypropylene Air Diaphragm Pump w/ PTFE Diaphragms & Balls, Acetal Seats

Description

Part of ARO’s Compact Series of pumps, the 1/4″ pumps feature a big performance in a small package. They feature flow rates up to 5.3 GPM and wide range of material and porting configurations. Manufactured for complete corrosion resistance – constructed with polypropylene center body, standard stainless steel fasteners, and your choice of Groundable Acetal, PVDF (Kynar) or Polypropylene casing materials. ARO offers a wide selection of corrosion-resistant materials to accommodate even the most difficult applications and a patented stall-resistant air valve that continuously keeps its pump running. The compact size of these ARO Diaphragm pump makes them ideal for OEM applications. Note: Non-Cancellable/Non-returnable Features Compact design 360° Mounting versatility when using optional flechecks Ideal for OEM Applications Creates a 31-feet of suction lift Specifications Diaphragm pump Air operated 1/4 in. NPT/BSP connection 1/4 in. NPT air inlet connection Ratio: 1:1 Positive displacement Maair inlet pressure: 125 PSI ( 8.6 bar) MaFlow: 5.3 GPM (20 LPM) Mafluid pressure: 120 PSI (8.6 bar) Mafluid temperature: 180° F Solids handling: 1/16 in. (1.6 mm) Madry suction/ discharge: 15 ft. (4.6 m) Noise Level: 62.3 dBa Displacement/ Cycle @125 PSI: 0.019 gal (0.072 ltr.) Housing: Groundable Polypropylene Diaphragm: PTFE Balls: PTFE Seats: Acetal Hardware: Stainless steel Downloads Spec Sheet (PDF Download) Operation Manual (PDF Download) Chemical Guide (PDF Download)
