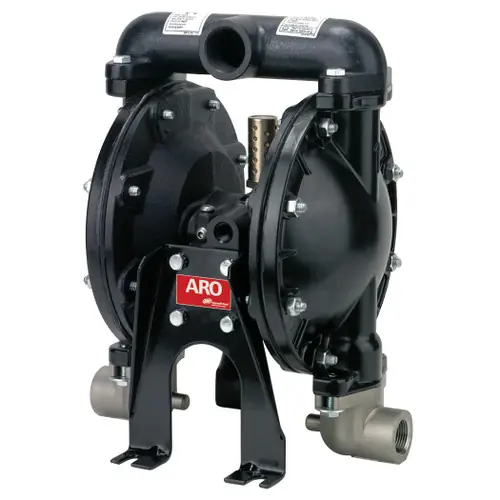

ARO 50/50 Antifreeze & Water Mixing 1 in. NPTF Air Diaphragm Pump w/ Nitrile Rubber Diaphragms & Seats, Acetal Balls

Description

This 1:1 ratio diaphragm pump is designed for mixing anti-freeze and water in 50/50 proportion for automotive coolant systems. It has dual inlets to allow simultaneous pumping and blending of antifreeze and water.

Features

50/50 proportion of water and anti-freeze
Compact, rugged design allows for easy mobility
Motor design delivers optimum air efficiency
Bolted construction for leak-free fluid handling
Easy access to ball checks and fluid caps for maintenance and repairs

Specifications

Ratio: 1:1
Maximum Flow: 35 GPM (133 LPM)
Displacement Per Cycle: 0.16 Gal (0.60 L)
Air Inlet (Female): 1/4″ NPTF
Fluid Inlet (2): 1″ NPTF
Fluid Outlet: 1″ NPTF
MaOperating Pressure: 120 PSI (8.3 BAR)
Suspended Solids MaDia.: 1/8″ (3.2 mm)
Sound Level (70 PSI, 60 Cycles/Min): 64.5 db(A)
Center Section: Aluminum
Fluid Cap, Manifold, Hardware Material: Aluminum
Seat Material: Nitrile
Ball Material: Acetal
Diaphragm Material: Nitrile
