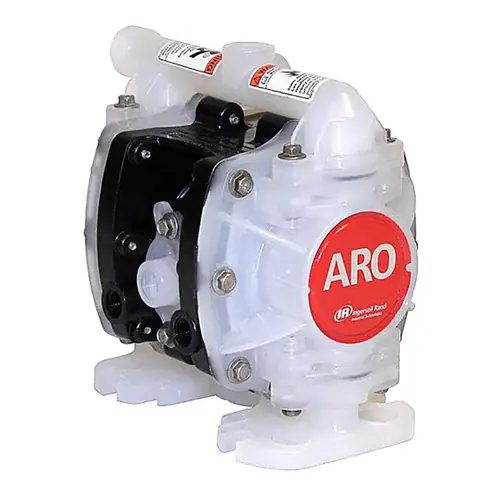

ARO 1/4 in. Polypropylene Air Double Diaphragm Pump w/ Santoprene Check Valve & Diaphragm

Description

ARO Compact Double Diaphragm Pumps provide peak performance in a small package. These positive displacement pumps are available in sizes ranging from 1/4″ to 3/4″ and flow rates up to 14.8 GPM (56 LPM). ARO offers a wide selection of corrosion resistant materials to accommodate even the most difficult applications and a patented stall resistant air valve that continuously keeps their pump running. The compact size of these ARO Diaphragm pump makes them ideal for OEM applications. Note: Non-Cancellable/Non-returnable Features Compact design 360° Mounting versatility when using optional flechecks Ideal for OEM Applications Creates a 31-feet of suction lift Specifications Double diaphragm pump Air operated 1/4 in. Inlet/Outlet 1/4 in. NPT air inlet connection Positive displacement Solids handling: 1/16 in. Air inlet pressure range: 10- 125 PSI ( 0.69- 8.6 bar) MaFlow: 5.3 GPM (20.1 LPM) Mafluid pressure: 125 PSI (8.6 bar) Matemperature: 175°F ( 79.4°C) Noise Level: 62.3 dBa Housing: Polypropylene Diaphragm: Santoprene Check Valve: Santoprene Seats: Polypropylene Hardware: Stainless steel Downloads Spec Sheet (PDF Download) Operation Manual (PDF Download) Chemical Guide (PDF Download)
