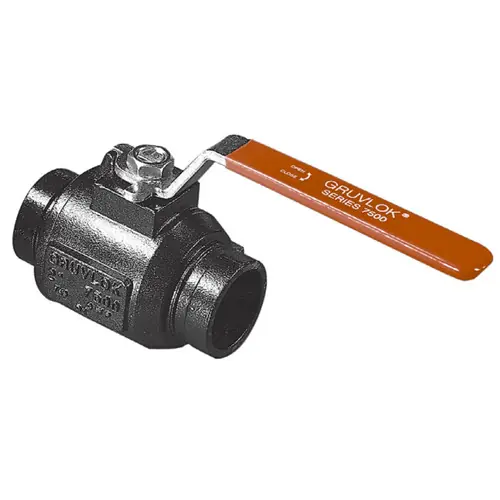

Anvil Gruvlok Series 7500 Ductile Iron Two-Piece Ball Valve w/ Locking Handle

Description

Anvil Gruvlok Series 7500 Ductile Iron Two-Piece Ball Valve w/ Locking Handle
The ASC Series 7500 304 Stainless Steel Ball Valve with Locking Handle offers unparalleled durability and performance for a wide range of applications. Crafted with precision and quality materials, this two-piece design valve ensures reliability and safety in demanding environments. With its compliant build and advanced features, it’s an ideal choice for industrial and commercial settings.

Features

Robust Construction: Constructed with Ductile Iron body and endplate (ASTM A 395), ensuring strength and longevity
Stainless Steel Ball: Features a stainless steel 316 or 304 ball for corrosion resistance and extended service life
Blow-Out Proof Stem: Designed with a blow-out proof stem for added safety and reliability
Low Operating Torque: Offers low operating torque for smooth and effortless operation
High Cv: Provides high Cv for efficient flow performance
Compliance: Compliant with NACE MR01-75 standards when stainless steel trim is specified
Grooved Ends: Grooved ends conform to the requirements of AWWA C606 for steel pipe, ensuring compatibility
Locking Handle: Equipped with a locking handle for secure operation and prevention of unauthorized access

Specifications

Material: Ductile Iron/Stainless Steel
Body: Ductile Iron ASTM A 395
Endplate: Ductile Iron ASTM A 395
Ball: 304 Stainless Steel
Stem: 316 Stainless Steel
Thrust Washer: RTFE
Stem Seal: Fluoroelastomer
Retaining Ring: Carbon Steel
Handle: Carbon Steel Zinc Plated
Handle Nut: 300 Series Stainless Steel
Seat: RTFE
Body Seal: Viton
Lock Plate: 300 Series Stainless Steel
