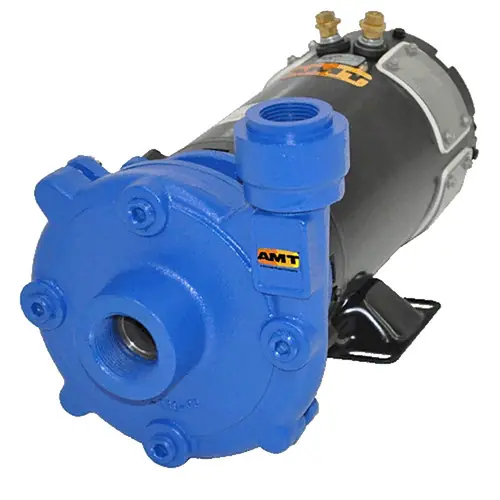

AMT 12DC-95 1 1/4 in. x 1 in. High Head Centrifugal Washdown Pump 52 GPM

Description

AMT 12 Volt DC Washdown pumps are designed for OEM, septic service, pumper and marine applications requiring a DC motor. The motor has a one hour duty rating and is furnished with a stainless steel shaft. This washdown duty pump is available in a variety of construction and seal materials to meet your specifications. Pull-from-rear design for easy servicing without disturbing any piping. High efficiency impeller maximizes performance. Pumps are not self-priming and require flooded suction. Premium 12 Volt DC washdown duty motors are built to handle high pressure washdown and damp/wet environments. The motor features epoxy paint, condensate drains, interior coating to protect against moisture or corrosion, special shaft seals to retard water, 12 Volt DC stud connections with O-ring seals, oversized brushes assuring longer brush life and base mount. Units are not submersible in liquids. Model 12DC-95 is constructed using cast Iron with nitrile rubber seals while model 12DC-98 is constructed using cast stainless steel with FKM Seals. Features 300 Series Investment Cast Stainless Steel and Cast Iron with Stainless Steel Impeller Construction Viton® Mechanical Seal and O-Ring with Stainless Steel Models Buna-N Mechanical Seal and O-Ring with Cast Iron Models Discharge Port Rotates in 90° Increments (4) Front Drain Plugs Maximum Flow 56 GPM Maximum Head 80 Ft. (35 PSI) High Efficiency Closed Impeller 7/8 HP 12 Volt DC Premium Washdown Duty Motor for Severe and Damp/Wet Operating Conditions Specifications Brand: AMT Series: 12DC Type: Centrifugal Pump Suction and Discharge Ports: 1 1/4 in. NPT 1 in. NPT Material: Cast Iron W/ Nitrile Seals  Impeller Material: Stainless Steel Voltage: 12V DC Maximum Working Pressure: 150 PSI Maximum Temperature: 180° F (Nitrile Rubber Seal)  MaFlow-Rate: 52 GPM Maximum Head: 74 Ft. (32 PSI) HP: 7/8 Seal Material: Nitrile Rubber or FKM Downloads Product Manual (PDF Download) Specification Sheet (PDF Download)
