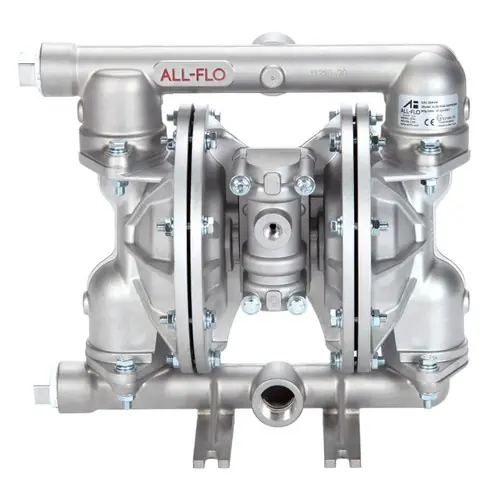

All-Flo A100 1 in. NPT Aluminum Air Diaphragm Pump w/ Bunalast™ Diaphragms, Nitrile Rubber & Polypropylene Seats

Description

The most energy-efficient air operated diaphragm pump in the world. With a smart simple design perfected during years of intensive research. combines rugged reliability and ease of maintenance to deliver the best performance on the market today. Engineered to outperform the competition while using the fewest number of air valve parts in the industry. In fact, during operation, only four pieces of the air valve move. Easier to maintain, faster to fiif there’s a problem, and less expensive to operate overall. Our general purpose metallic diaphragm pumps are available in three materials: aluminum, anodized aluminum, and stainless steel. AODD Pumps in aluminum and anodized aluminum offer medium corrosion and abrasion resistance, while stainless steel is suitable for applications that require higher chemical and abrasion resistance. Specifications 48 GPM Aluminum body Bunalast™ diaphragms Nitrile Rubber Balls Nitrile Rubber O-Ring Polypropylene seat 1/4 in. FNPT air inlet 120 PSI 1 in. liquid inlet 1 in. Liquid discharge 1/4 in. madiameter solids FNPT/FBSPT (threaded) 17 ft. H2O Dry/ 30 Ft H20 Wet MaSuction Lift Capability 0.07 Gal/ .28 Liters Displacement Per Stroke 3/4 in. FNPT air exhaust 80 dBA noise output Chemical Compatibility Acetic Acid Acetone Acetylene Aluminum Acetate Aluminum Chloride 100% & 20% Aluminum Sulfate Ammonia Nitrate Ammonium Sulfate Amyl-Alcohol Anti-Freeze Asphalt Barium Carbonate Barium Chloride Barium Hydroxide Barium Nitrate Barium Sulfate Beer BoraBoric Acid Butyl Alcohol Butyl Amine Calcium carbonate Calcium chloride Calcium Hydroxide Calcium Nitrate Calcium Sulfate Cane Juice Cane sugar liquors Carbon Dioxide Carbon Monoxide Carbonated water Carbonic Acid Cider Cinnamon Citric Acid Bleach Copper acetate Copper chloride Copper nitrate 5% Copper sulfate Corn oil Denatured alcohol Detergents Ethyl Alcohol (Ethanol) Epson Salts Ethylene Glycol Fatty Acids Ferric Chloride, Sulfate and Nitrate Fish Oil Freon 11 & 113 Fuel Oil Unleaded Gasoline Petroleum Hydraulic oils Glycols Hydrogen Peroxide Methanol Natural Gas Nitrogen Gas Sea Water Sewage Vinegar Downloads Product Manual (PDF Download) Spec Sheet (PDF Download) Brochure (PDF Download)
