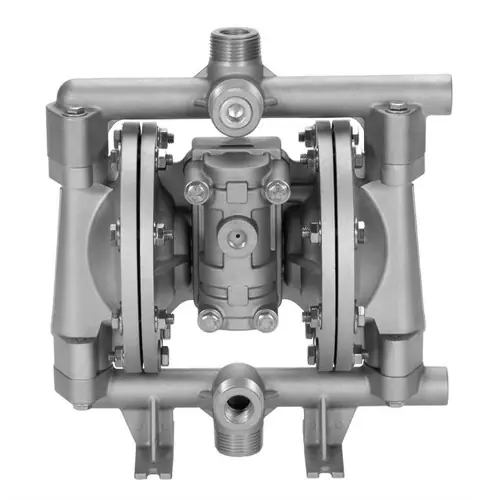

All-Flo A050 1/2 in. NPT Aluminum Air Diaphragm Pumps w/ Santoprene Diaphragms & Valves, Polypropylene Seats

Description

The most energy-efficient air operated diaphragm pump in the world. With a smart simple design perfected during years of intensive research. combines rugged reliability and ease of maintenance to deliver the best performance on the market today. Engineered to outperform the competition while using the fewest number of air valve parts in the industry. In fact, during operation, only four pieces of the air valve move. Easier to maintain, faster to fiif there’s a problem, and less expensive to operate overall. Our general purpose metallic diaphragm pumps are available in three materials: aluminum, anodized aluminum, and stainless steel. AODD Pumps in aluminum and anodized aluminum offer medium corrosion and abrasion resistance, while stainless steel is suitable for applications that require higher chemical and abrasion resistance. Note: Pumps must be configured with the bottom suction for use with a Drum kit, and can be field installed as long as the pump has the suction down option. Specifications 15 GPM Aluminum body Santoprene diaphragms Santoprene Balls EPDM O-Ring Polypropylene seat 1/4 in. FNPT air inlet 120 PSI 1/2 in. liquid inlet 1/2 in. liquid discharge 1/8 in. madiameter solids FNPT/FBSPT (threaded) 15 ft H2O Dry/ 31 Ft H20 Wet MaSuction Lift Capability 0.03 Gal/ .10 Liters Displacement Per Stroke 3/8 in. FNPT air exhaust 80 dBA noise output Downloads Product Manual (PDF Download) Spec Sheet (PDF Download) Brochure (PDF Download)
