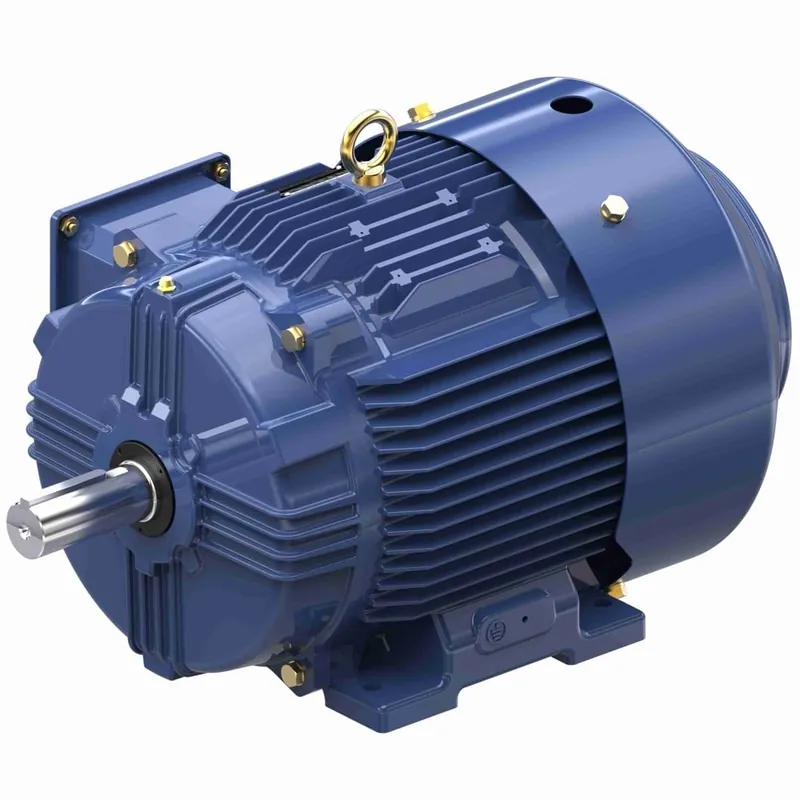

7.5HP 3PH 254T 6P TEFC 1200 230/460V

Description

Product Information

Brand Marathon
Sub-Brand Globetrotter®
Mfr # GT1017A
Wright’s # MAR GT1017A
Country of Origin MEX

Specifications

C Dim 24.15″
Electrical Type Squirrel Cage Inverter Rated
Enclosure ODP
Full Load Efficiency 91
Frame 254T
Frequency 60 Hz
HP 7.5 HP
HP2 7-1/2 HP
Insulation Class F
kW 5.6kW
Material Cast Iron
MaAmbient 40°C
Mounting Type Rigid Base
Number of Poles 6
Number of Speeds 1
Overload Protection No Protection
Phase 3
Rated Current 19.8/9.9 & 17/8.5
Rated Voltage 230/460
Rotation Reversible
RPM 1182
Service Factor 1.15
Shaft Diameter 1.626″
Speed 1182/1000
Starting Method
