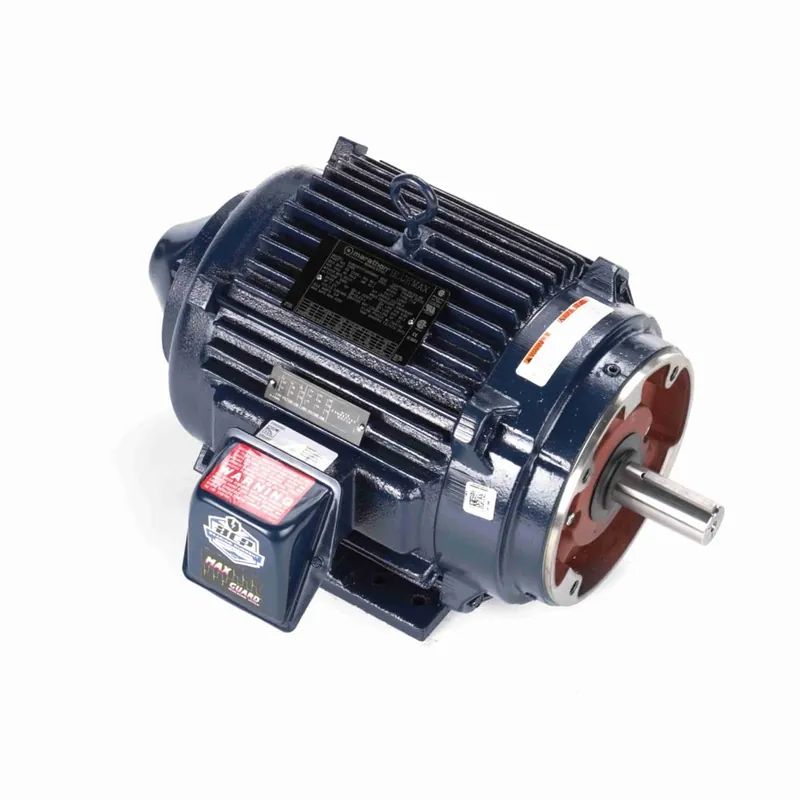

7.5HP 3PH 213TC 4P TEFC 1800 230/460V TS WB INV

Description

Product Information

Brand Marathon
Sub-Brand Blue Max® Inverter Duty
Mfr # Y595
Wright’s # MAR Y595
Country of Origin USA

Specifications

C Dim 21.03″
Electrical Type Squirrel Cage Inverter Duty
Enclosure ODP
Full Load Efficiency 88.5
Frame 213TC
Frequency 60 Hz
HP 7.5 HP
HP2 7-1/2 HP
Insulation Class H
kW 5.6kW
Material Cast Iron
MaAmbient 40°C
Mounting Type Rigid Base
Number of Poles 4
Number of Speeds 1
Overload Protection Thermostat
Phase 3
Rated Current 19.4/9.7
Rated Voltage 230/460
Rotation Reversible
RPM 1765
Service Factor 1
Shaft Diameter 1.375″
Speed 1765
Starting Method
