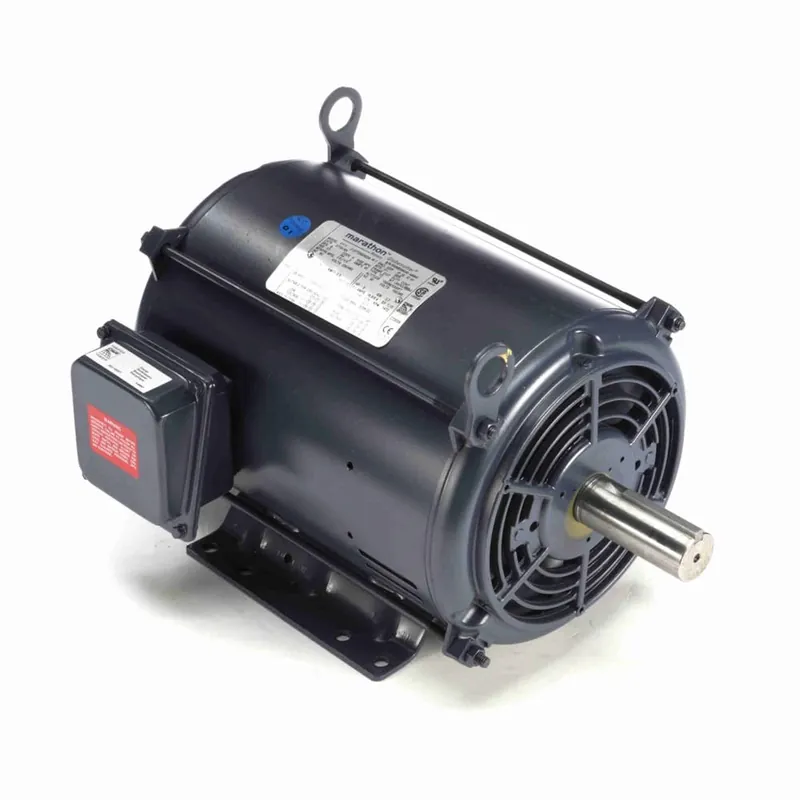

7.5HP 3PH 213T 4P ODP 1800 230/460V

Description

Product Information

Brand Marathon
Sub-Brand Globetrotter®
Mfr # GT0016A
Wright’s # MAR GT0016A
Country of Origin MEX

Specifications

C Dim 17.52″
Electrical Type Squirrel Cage Inverter Rated
Enclosure ODP
Full Load Efficiency 91
Frame 213T
Frequency 60 Hz
HP 7.5 HP
HP2 7-1/2 HP
Insulation Class F
kW 5.6kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Rigid Base
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 3
Rated Current 19.8/9.9 & 16.8/8.4
Rated Voltage 230/460
Rotation Reversible
RPM 1766
Service Factor 1.15
Shaft Diameter 1.375″
Speed 1800/1500
Starting Method
