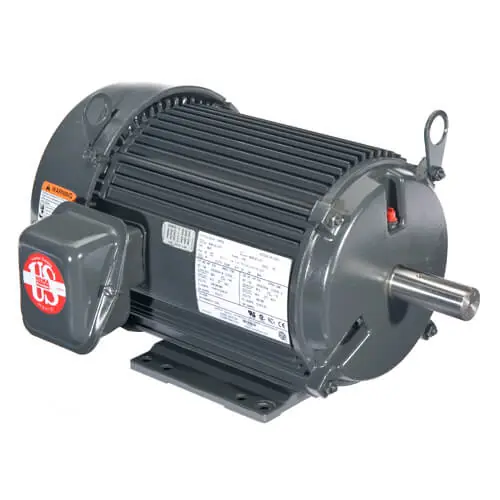

7.5HP 3PH 184T 3600 TEFC 208-230/460V

Description

Product Information

Brand US Motors
Mfr # U7P1AF
Wright’s # USM U7P1AF
Country of Origin MEX

Specifications

C Dim 16.5″
Electrical Type Polyphase
Enclosure TEFC
Frame 184T
Frequency 60Hz
HP 7.5 HP
HP2 7-1/2 HP
Insulation Class F
kW 5.59kW
MaAmbient 40°C
Mounting Type HORZ-FOOTED
Number of Poles 2
Number of Speeds 1
Overload Protection None
Phase 3
Rated Current 19.9-17.7/8.9
Rated Voltage 208-230/460V
RPM 3510
Service Factor 1.25
