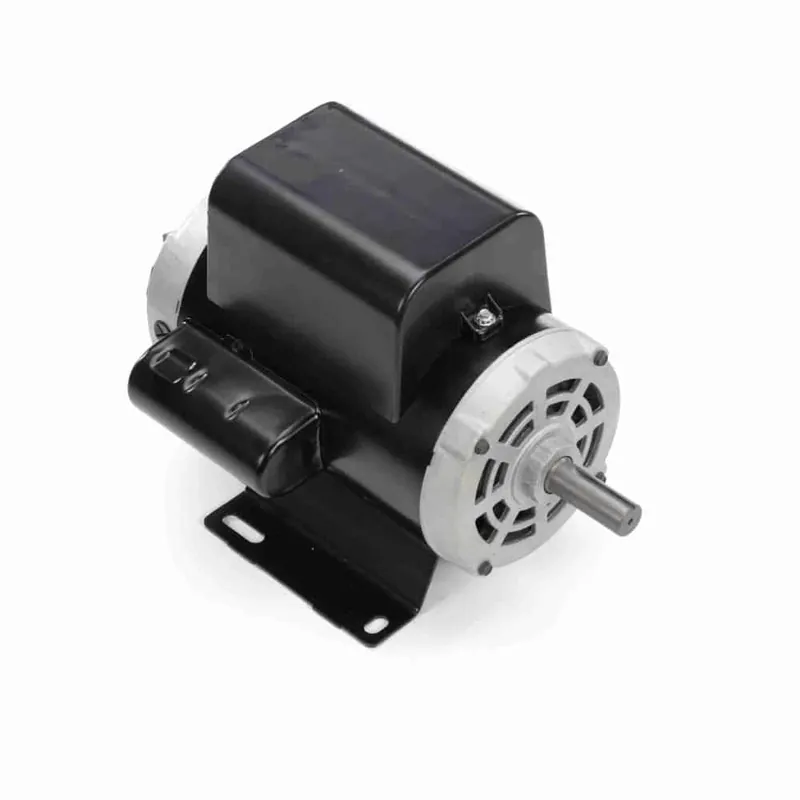

6HP 1PH 56Y 2P ODP 3450 230V MOL CM

Description

Product Information

Brand Century
Mfr # B387
Wright’s # CEN B387
Country of Origin MEX

Specifications

C Dim 14.56″
Electrical Type Capacitor Start, Capacitor Run, Single Or Dual Voltage
Enclosure ODP
Frame 56Y
Frequency 60 Hz
HP 6 HP
HP2 6 HP
Insulation Class F
kW 4.5kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 2
Number of Speeds 1
Overload Protection Manual
Phase 1
Rated Current 24
Rated Voltage 230
Rotation Clockwise
RPM 3450
Service Factor 1
Shaft Diameter 0.875″
Speed 3450
Starting Method
