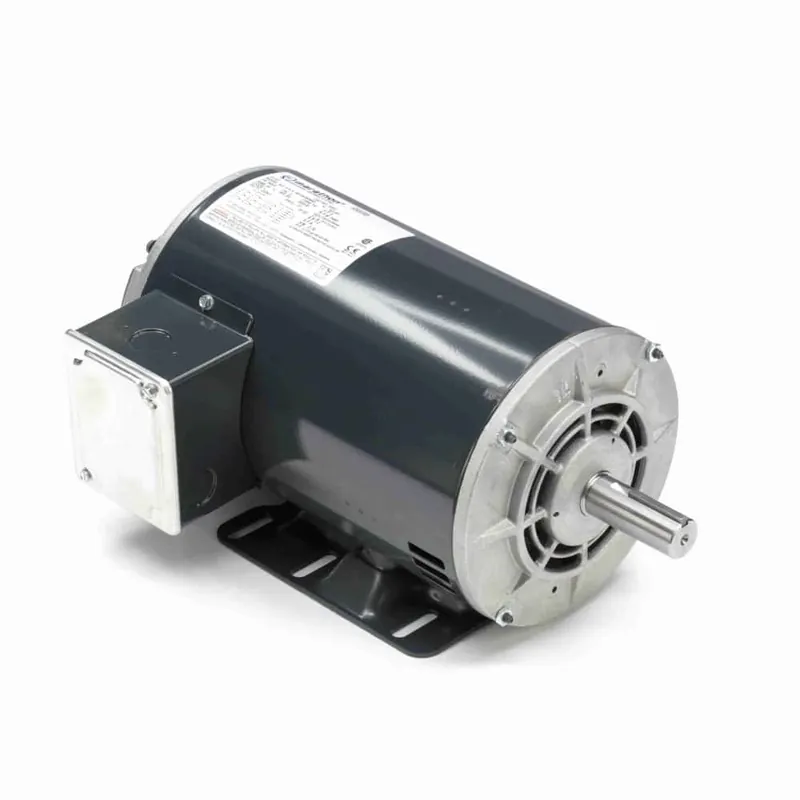

5HP 3PH 6.5″ 2P DP 3450 208-230/460V WB 56HZ AOL

Description

Product Information

Brand Leeson
Mfr # X251
Wright’s # LSN X251
Country of Origin MEX

Specifications

C Dim 13.49″
Electrical Type Squirrel Cage Induction Run
Enclosure DP
Full Load Efficiency 84
Frame 56HZ
Frequency 60 Hz
HP 5 HP
HP2 5 HP
Insulation Class B
kW 3.7kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Rigid Base
Number of Poles 2
Number of Speeds 1
Overload Protection Automatic
Phase 3
Rated Current 13.5-12.4/6.2
Rated Voltage 208-230/460
Rotation Reversible
RPM 3450
Service Factor 1
Shaft Diameter 0.625″
Speed 3450
Starting Method
