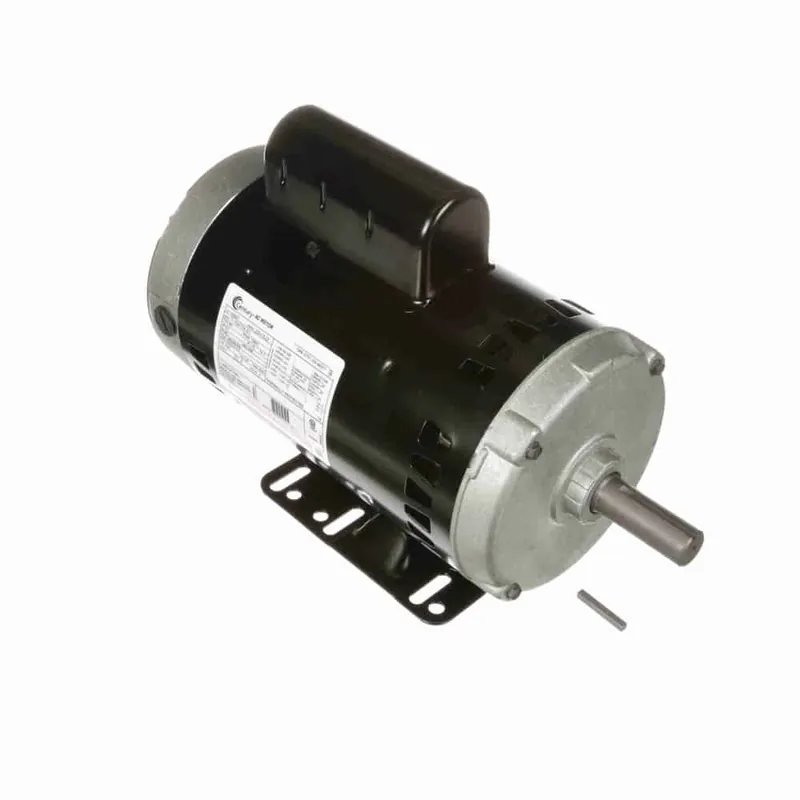

5HP 3PH 56HZ 2P ODP 3600 208-230/460V AOL

Description

Product Information

Brand Century
Mfr # H847
Wright’s # CEN H847
Country of Origin MEX

Specifications

C Dim 15.06″
Electrical Type Polyphase, Induction Type, Single Or Dual Voltage
Enclosure ODP
Full Load Efficiency 86.5
Frame 56HZ
Frequency 60 Hz
HP 5 HP
HP2 5 HP
Insulation Class B
kW 3.7kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 2
Number of Speeds 1
Overload Protection Thermally Protected
Phase 3
Rated Current 6.6/13.4-13.2
Rated Voltage 208-230/460
Rotation Reversible Counterclockwise
RPM 3450
Service Factor 1.15
Shaft Diameter 0.875″
Speed 3600
Starting Method
