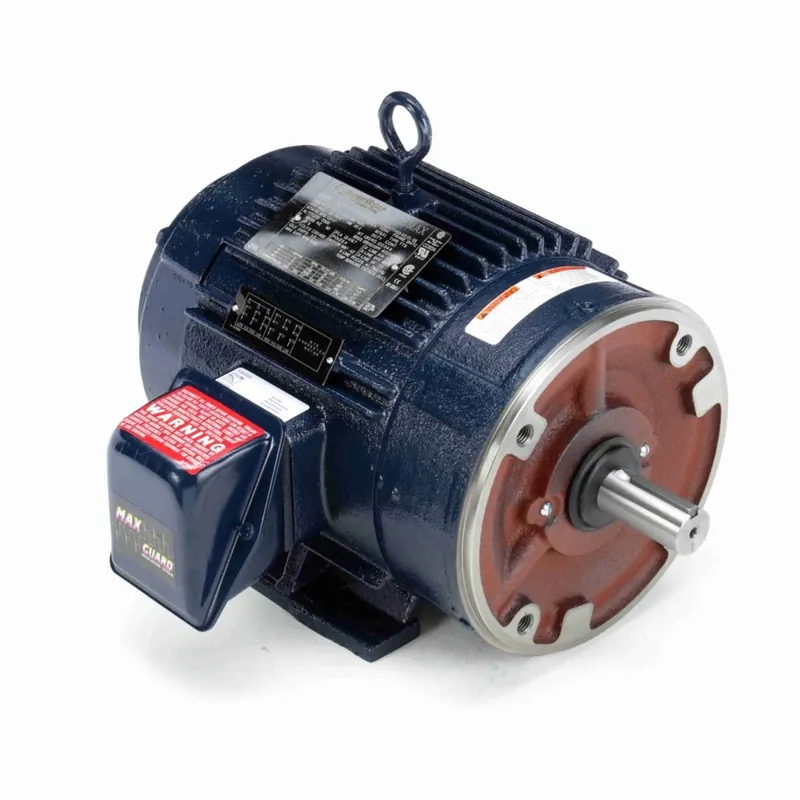

5HP 3PH 184TC 4P TENV 1750 230/460V TS WB INV

Description

Product Information

Brand Marathon
Sub-Brand Blue Max® Inverter Duty
Mfr # Y564
Wright’s # MAR Y564
Country of Origin USA

Specifications

C Dim 17.68″
Electrical Type Squirrel Cage Inverter Duty
Enclosure ODP
Full Load Efficiency 88.5
Frame 184TC
Frequency 60 Hz
HP 5 HP
HP2 5 HP
Insulation Class H
kW 3.7kW
Material Cast Iron
MaAmbient 40°C
Mounting Type Rigid Base
Number of Poles 4
Number of Speeds 1
Overload Protection Thermostat
Phase 3
Rated Current 13.4/6.7
Rated Voltage 230/460
Rotation Reversible
RPM 1750
Service Factor 1
Shaft Diameter 1.125″
Speed 1750
Starting Method
