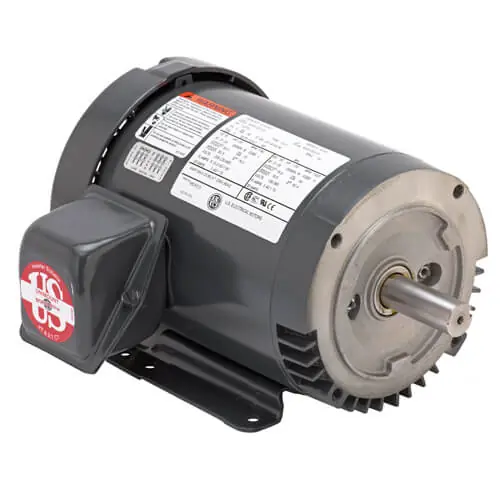

5HP 3PH 184TC 3600 TEFC 208-230/460V

Description

Product Information

Brand US Motors
Mfr # U5P1DC
Wright’s # USM U5P1DC
Country of Origin MEX

Specifications

C Dim 16.2″
Electrical Type Polyphase
Enclosure TEFC
Frame 184TC
Frequency 60/50 Hz
HP 5 HP
HP2 5 HP
Insulation Class F
kW 3.73kW
MaAmbient 40°C
Mounting Type HORZ-FOOTED
Number of Poles 2
Number of Speeds 1
Overload Protection None
Phase 3
Rated Current 13.4-12.2/6.1
Rated Voltage 208-230/460V
RPM 3520
Service Factor 1.25
