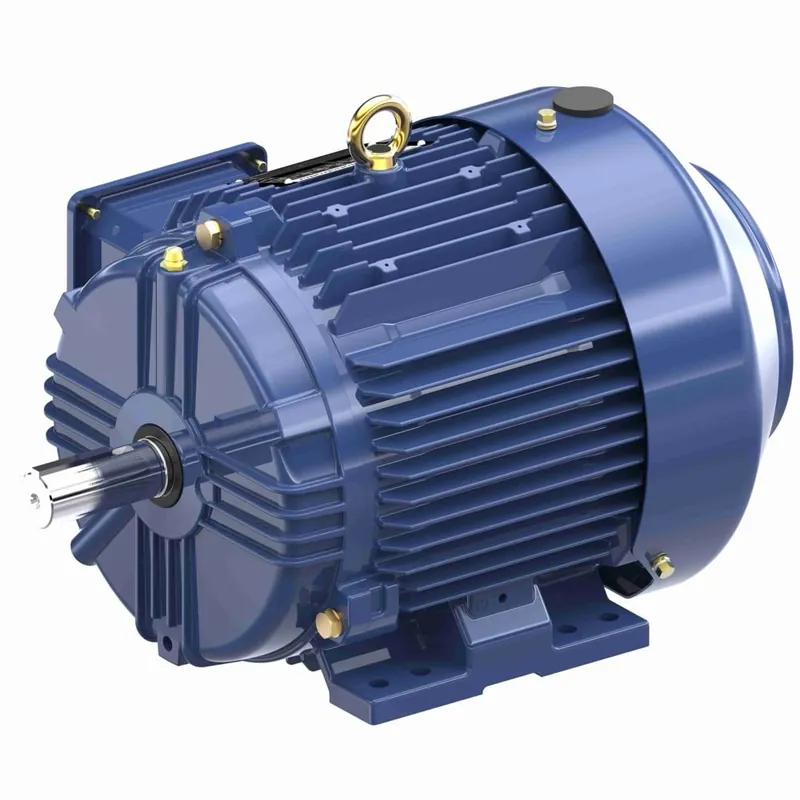

5HP 3PH 184T 2P TEFC 3600 230/460V WB

Description

Product Information

Brand Marathon
Sub-Brand Globetrotter®
Mfr # GT1012A
Wright’s # MAR GT1012A
Country of Origin MEX

Specifications

C Dim 16.08″
Electrical Type Squirrel Cage Inverter Rated
Enclosure ODP
Full Load Efficiency 88.5
Frame 184T
Frequency 60 Hz
HP 5 HP
HP2 5 HP
Insulation Class F
kW 3.7kW
Material Cast Iron
MaAmbient 40°C
Mounting Type Rigid Base
Number of Poles 2
Number of Speeds 1
Overload Protection No Protection
Phase 3
Rated Current 12.4/6.2 & 9.6/4.8
Rated Voltage 230/460
Rotation Reversible
RPM 3527
Service Factor 1.15
Shaft Diameter 1.125″
Speed 3527 & 2945
Starting Method
