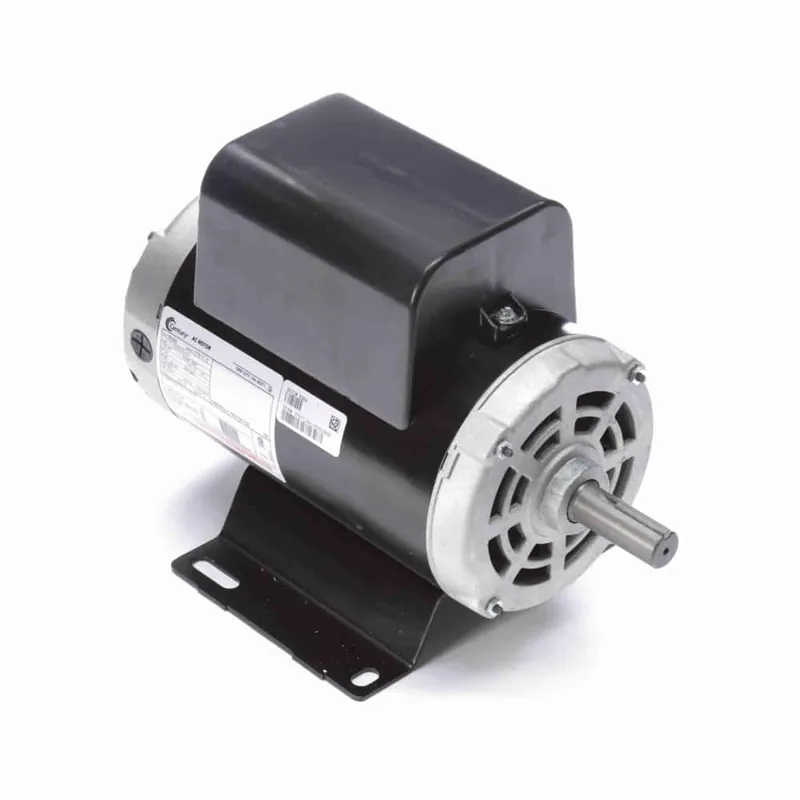

5HP 1PH 56Y 2P ODP 3600 208-230V MOL CM

Description

Product Information

Brand Century
Mfr # B384
Wright’s # CEN B384
Country of Origin MEX

Specifications

C Dim 14.56″
Electrical Type Capacitor Start, Capacitor Run, Single Or Dual Voltage
Enclosure ODP
Frame 56Y
Frequency 60 Hz
HP 5 HP
HP2 5 HP
Insulation Class B
kW 3.7kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 2
Number of Speeds 1
Overload Protection Manual
Phase 1
Rated Current 22
Rated Voltage 208-230
Rotation Clockwise
RPM 3450
Service Factor 1.15
Shaft Diameter 0.875″
Speed 3600
Starting Method
