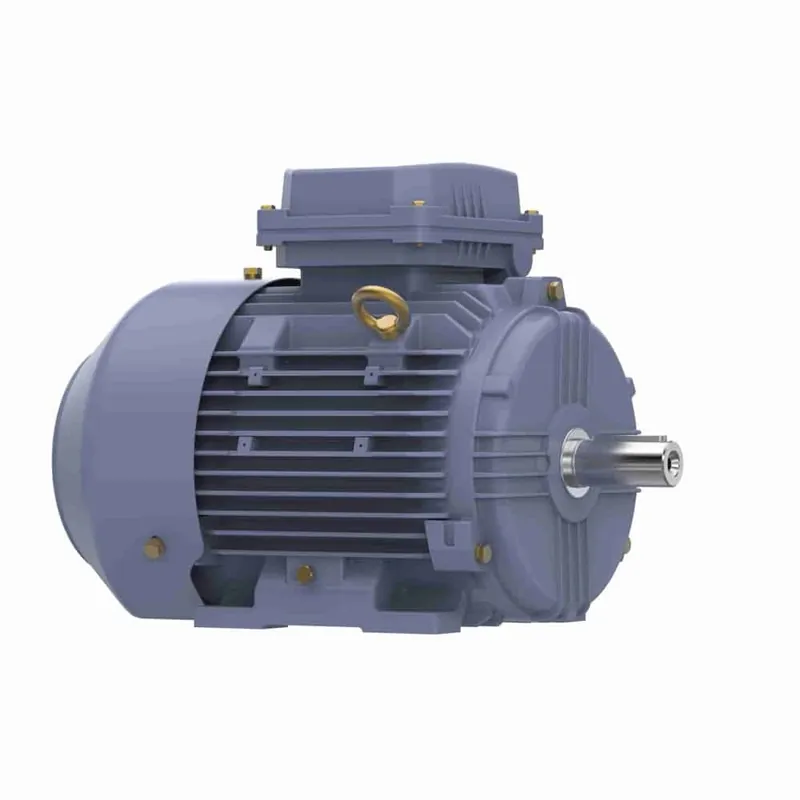

4HP 3PH 100L 4P TEFC 1800 230/460V

Description

Product Information

Brand Marathon
Mfr # R352B
Wright’s # MAR R352B
Country of Origin IND

Specifications

C Dim 15.67″
Electrical Type Squirrel Cage Inverter Rated
Enclosure ODP
Full Load Efficiency 89.5
Frame 100L
Frequency 60 Hz
HP 4 HP
HP2 4 HP
Insulation Class F
kW 3kW
Material Cast Iron
MaAmbient 40°C
Mounting Type B3
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 3
Rated Current 10.4/5.2 & 9.2/4.6
Rated Voltage 230/460
Rotation Reversible
RPM 1765
Service Factor 1.15
Shaft Diameter 1.102″
Speed 1765 & 1470
Starting Method
