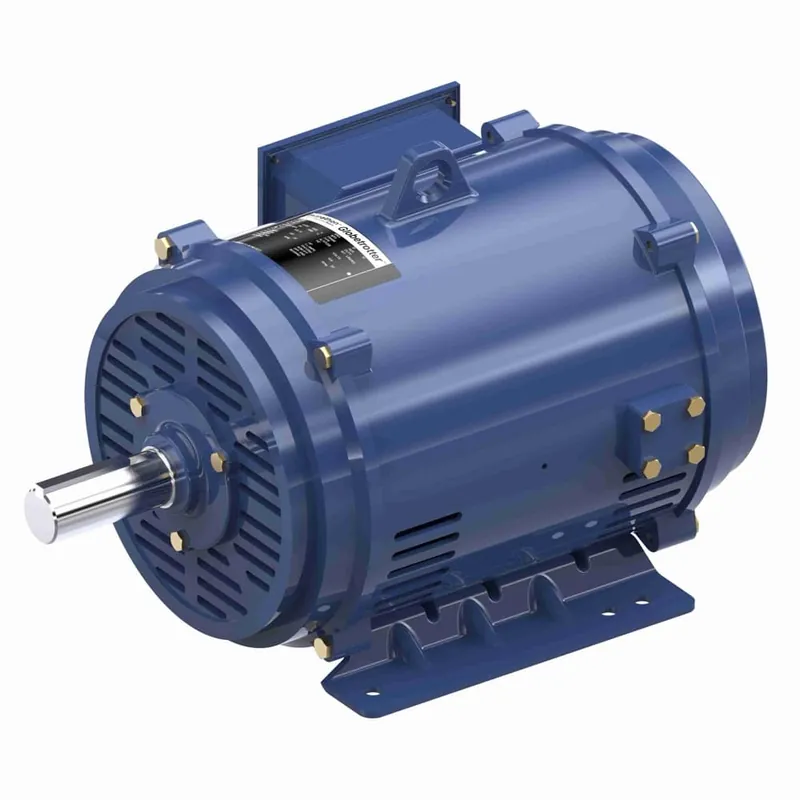

40HP 3PH 324T 4P ODP 1800 230/460V

Description

Product Information

Brand Marathon
Sub-Brand Globetrotter®
Mfr # GT0073
Wright’s # MAR GT0073
Country of Origin MEX

Specifications

C Dim 28.55″
Electrical Type Squirrel Cage Inverter Rated
Enclosure ODP
Full Load Efficiency 94.1
Frame 324T
Frequency 60 Hz
HP 40 HP
HP2 40 HP
Insulation Class F
kW 30kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Rigid Base
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 3
Rated Current 95.5/47.5 & 87.5/43.5
Rated Voltage 230/460
Rotation Reversible
RPM 1780
Service Factor 1.15
Shaft Diameter 2.125″
Speed 1800/1500
Starting Method
