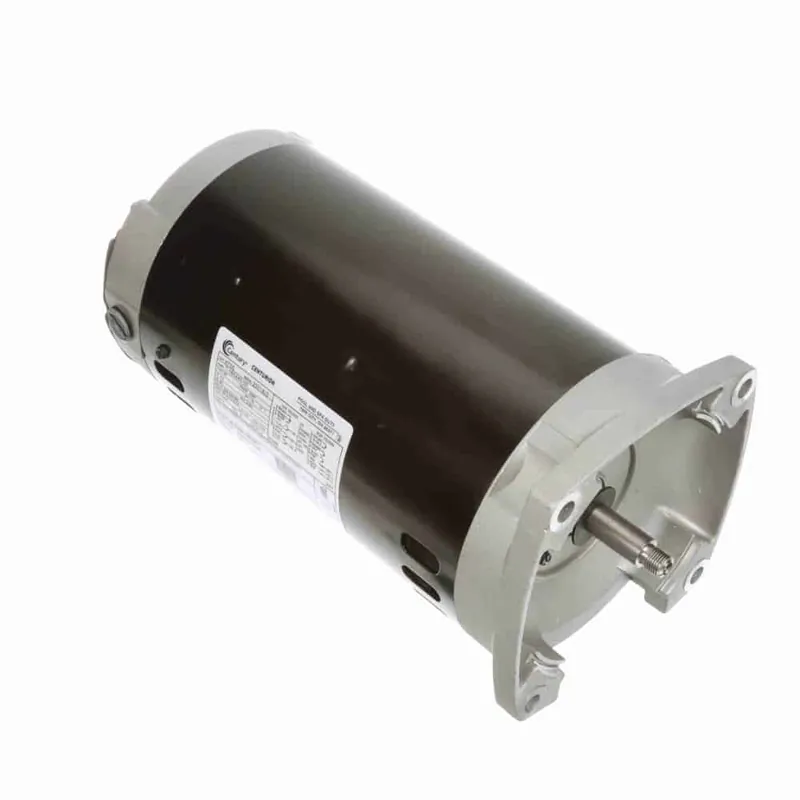

3HP 3PH 56Y 2P ODP 3600 208-230/460V UL1081

Description

Product Information

Brand Century
Mfr # H755
Wright’s # CEN H755
Country of Origin MEX

Specifications

C Dim 13.9″
Electrical Type Polyphase, Induction Type, Single Or Dual Voltage
Enclosure ODP
Frame 56Y
Frequency 60 Hz
HP 3 HP
HP2 3 HP
Insulation Class B
kW 2.2kW
Material Rolled Steel
MaAmbient 50°C
Number of Poles 2
Number of Speeds 1
Overload Protection No Protection
Phase 3
Rated Current SF 9.8-9.6/4.8
Rated Voltage 208-230/460
Rotation Reversible Counterclockwise
RPM 3450
Service Factor 1.15
Shaft Diameter 0.625″
Speed 3600
