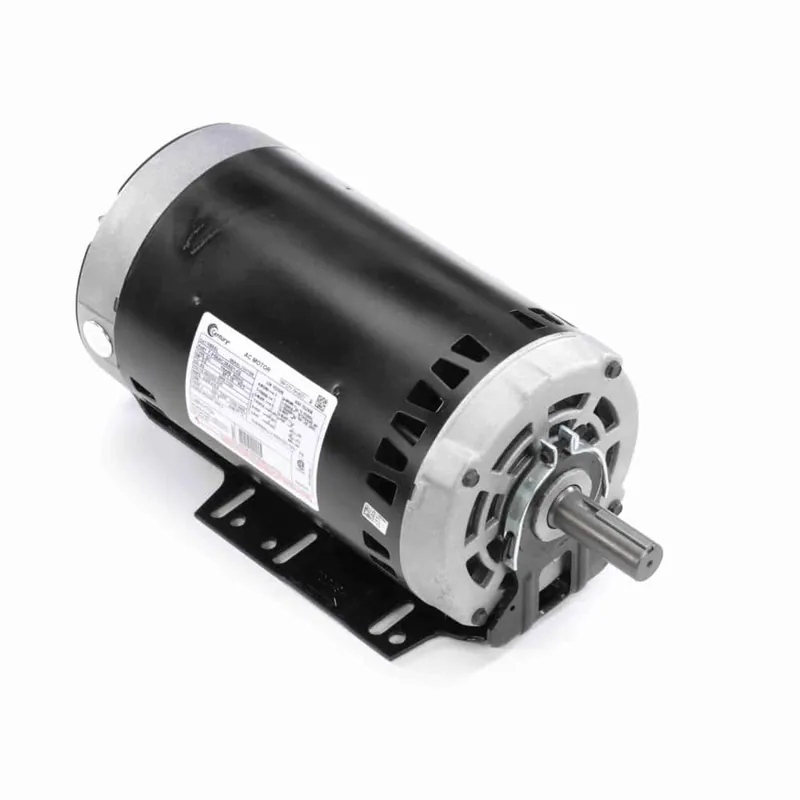

3HP 3PH 56HZ ODP 1750 200-230/460V BM

Description

Product Information

Brand Century
Mfr # H855L
Wright’s # CEN H855L
Country of Origin MEX

Specifications

C Dim 14.56″
Electrical Type Polyphase, Induction Type, Single Or Dual Voltage
Enclosure ODP
Full Load Efficiency 78.5
Frame 56HZ
Frequency 60 Hz
HP 3 HP
HP2 3 HP
Insulation Class F
kW 2.2kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection Thermally Protected
Phase 3
Rated Current 4.5/9.4-8.9
Rated Voltage 200-230/460
Rotation Reversible Counterclockwise
RPM 1750
Service Factor 1.15
Shaft Diameter 0.875″
Speed 1750
Starting Method
