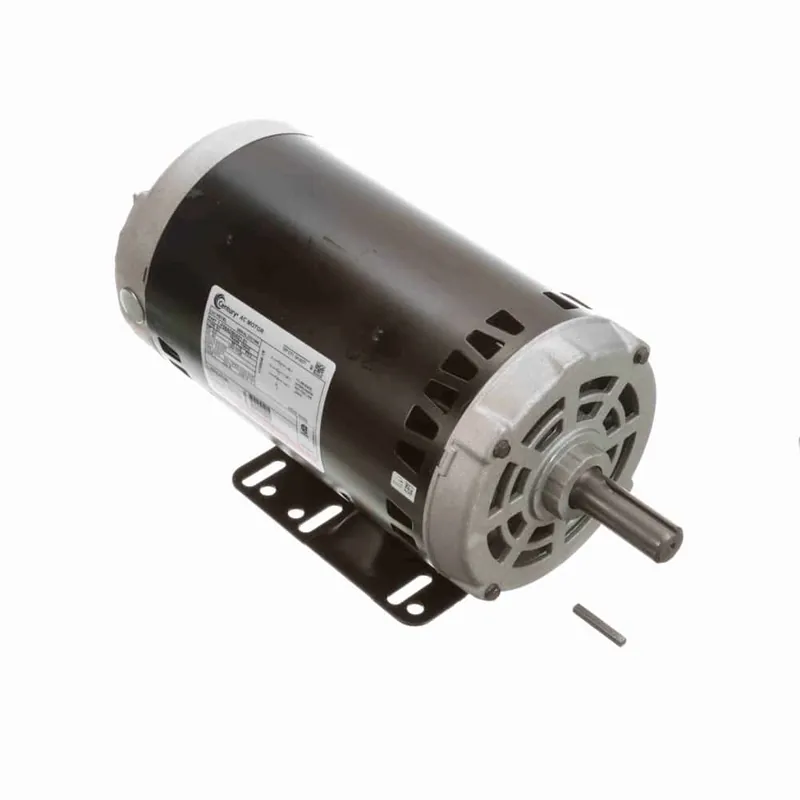

3HP 3PH 56HZ 4P ODP 1725 200-208V

Description

Product Information

Brand Century
Mfr # H518L
Wright’s # CEN H518L
Country of Origin MEX

Specifications

C Dim 15.06″
Electrical Type Polyphase, Induction Type, Single Or Dual Voltage
Enclosure ODP
Frame 56HZ
Frequency 60 Hz
HP 3 HP
HP2 3 HP
Insulation Class B
kW 2.2kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 3
Rated Current 8.9-8.9
Rated Voltage 200-208
Rotation Reversible Counterclockwise
RPM 1725
Service Factor 1.15
Shaft Diameter 0.875″
Speed 1725
Starting Method
