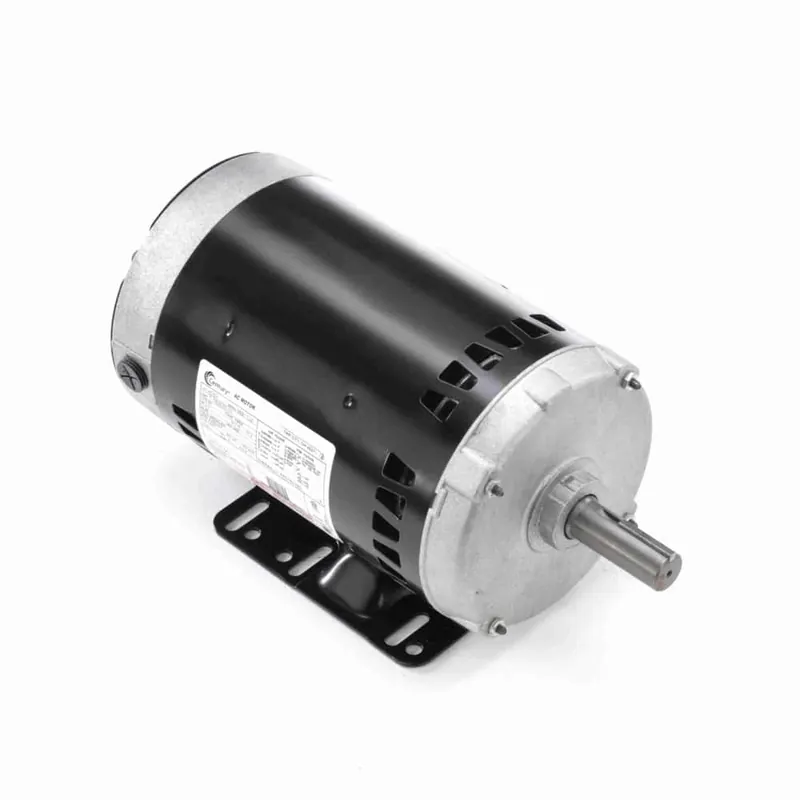

3HP 3PH 56HZ 2P ODP 3450 200-230/460V AOL

Description

Product Information

Brand Century
Mfr # H757
Wright’s # CEN H757
Country of Origin MEX

Specifications

C Dim 13.81″
Electrical Type Polyphase, Induction Type, Single Or Dual Voltage
Enclosure ODP
Full Load Efficiency 82.5
Frame 56HZ
Frequency 60 Hz
HP 3 HP
HP2 3 HP
Insulation Class B
kW 2.2kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 2
Number of Speeds 1
Overload Protection Thermally Protected
Phase 3
Rated Current 4.3/9.0-8.6
Rated Voltage 200-230/460
Rotation Reversible Counterclockwise
RPM 3450
Service Factor 1.15
Shaft Diameter 0.875″
Speed 3450
Starting Method
