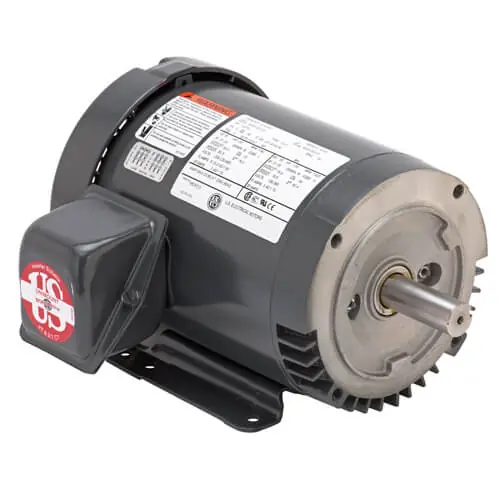

3HP 3PH 56C 3600 TEFC 208-230/460V WB

Description

Product Information

Brand US Motors
Mfr # U3P1DFC
Wright’s # USM U3P1DFC
Country of Origin MEX

Specifications

C Dim 13.1″
Electrical Type Polyphase
Enclosure TEFC
Frame 56C
Frequency 60Hz & 50Hz
HP 3 HP
HP2 3 HP
Insulation Class F
kW 2.24kW
MaAmbient 40°C
Mounting Type HORZ-FOOTED
Number of Poles 2
Number of Speeds 1
Overload Protection None
Phase 3
Rated Current 8.1-7.2/3.6
Rated Voltage 208-230/460V
RPM 3490
Service Factor 1.25
