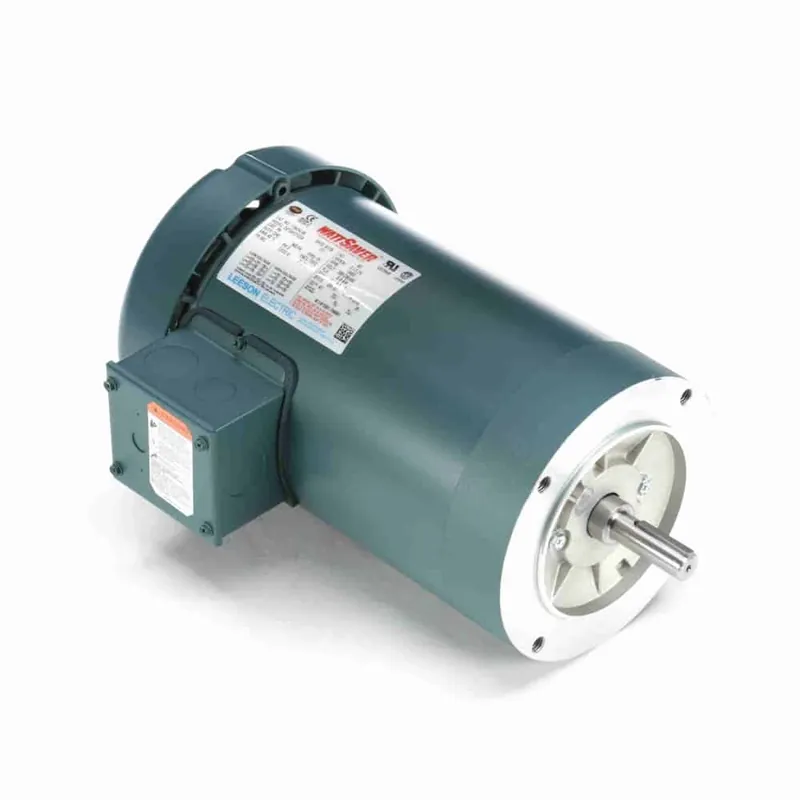

3HP 3PH 56C 2P TEFC 3490 208-230/460V NB
Description
Product Information
Brand Leeson
Mfr # 119414.00
Wright’s # LSN 119414.00
Country of Origin USA
Specifications
C Dim 13.86″
Electrical Type Squirrel Cage Induction Run
Enclosure TEFC
Full Load Efficiency 86.5
Frame 56C
Frequency 60 Hz
HP 3 HP
HP2 3 HP
Insulation Class F
kW 2.2kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Round
Number of Poles 2
Number of Speeds 1
Overload Protection No Protection
Phase 3
Rated Current 8.8-8.0/4.0
Rated Voltage 208-230/460
Rotation Reversible
RPM 3490
Service Factor 1.15
Shaft Diameter 0.625″
Speed 3490
Starting Method
