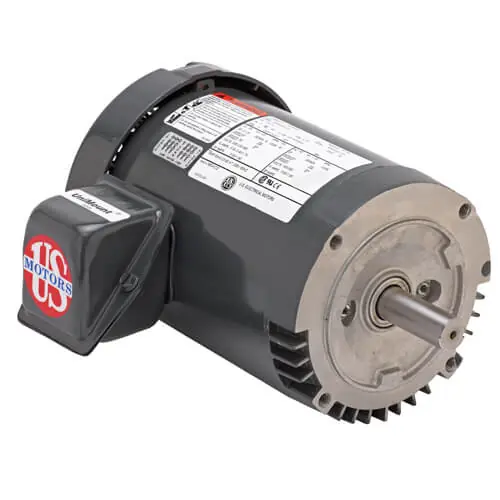

3HP 3PH 182TC 1800 TEFC 208-230/460V NB

Description

Product Information

Brand US Motors
Mfr # U3P2DCR
Wright’s # USM U3P2DCR
Country of Origin MEX

Specifications

C Dim 16.1″
Electrical Type Polyphase
Enclosure TEFC
Frame 182TC
Frequency 60/50 Hz
HP 3 HP
HP2 3 HP
Insulation Class F
kW 2.24kW
MaAmbient 40°C
Mounting Type HORZ-FOOTLESS
Number of Poles 4
Number of Speeds 1
Overload Protection None
Phase 3
Rated Current 8.4-7.8/3.9
Rated Voltage 208-230/460V
RPM 1765
Service Factor 1.25
