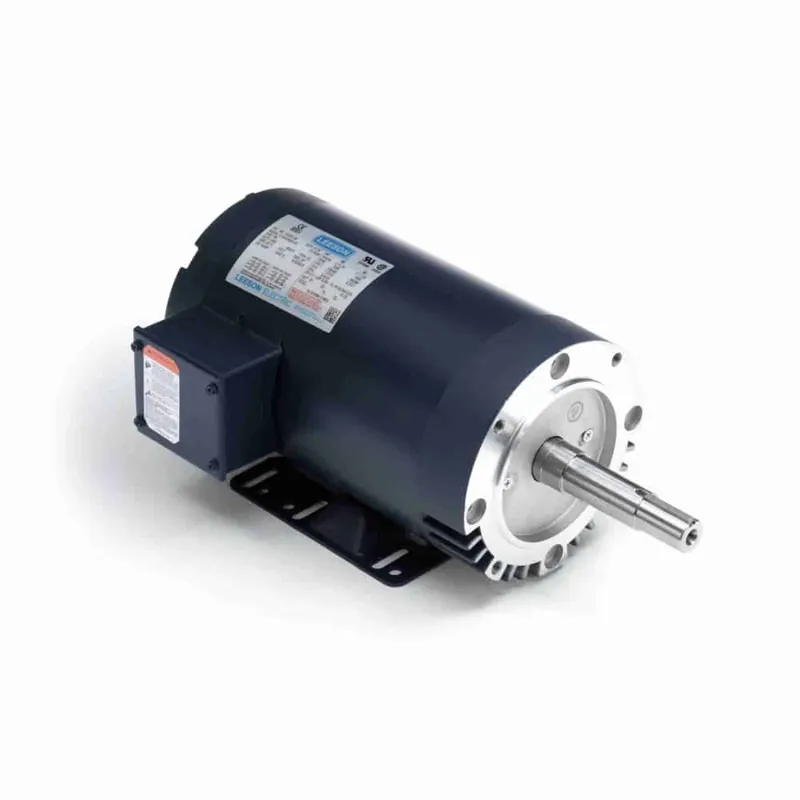

3HP 3PH 145JM ODP 3490 230/460V

Description

Product Information

Brand Leeson
Mfr # 122081.00
Wright’s # LSN 122081.00
Country of Origin USA

Specifications

C Dim 15.5″
Electrical Type Squirrel Cage Inverter Rated
Enclosure DP
Full Load Efficiency 86.5
Frame 145JM
Frequency 60 Hz
HP 3 HP
HP2 3 HP
Insulation Class F
kW 2.2kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Rigid Base
Number of Poles 2
Number of Speeds 1
Overload Protection No Protection
Phase 3
Rated Current 7.2/3.6 & 6.2/3.1
Rated Voltage 230/460
Rotation Reversible
RPM 3490
Service Factor 1.15
Shaft Diameter 0.875″
Speed 3490 & 2880
Starting Method
