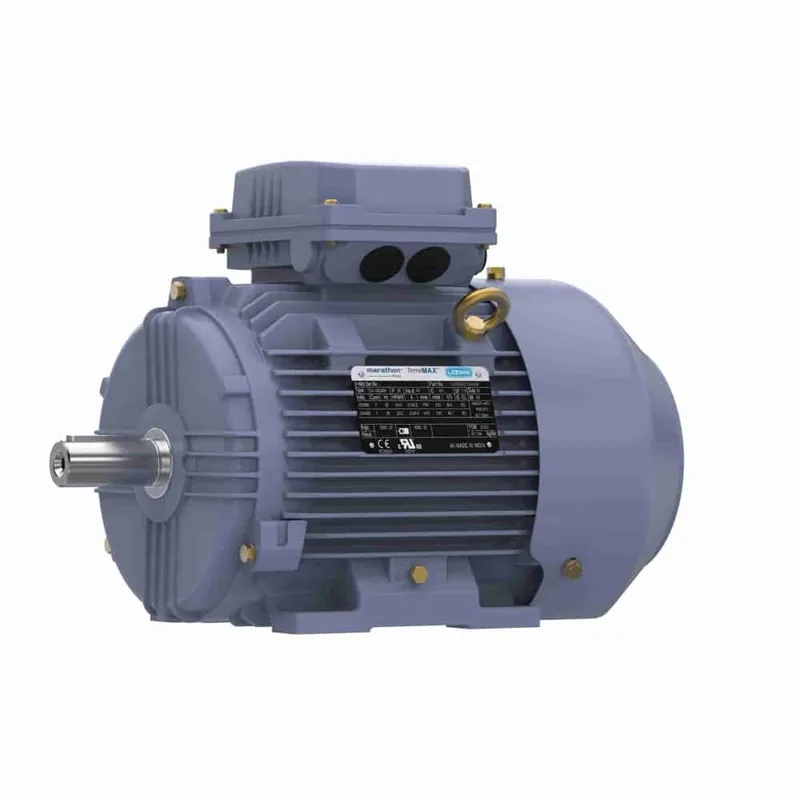

3HP 3PH 100L 4P TEFC 1800 230/460V

Description

Product Information

Brand Marathon
Mfr # R322B
Wright’s # MAR R322B
Country of Origin IND

Specifications

C Dim 15.67″
Electrical Type Squirrel Cage Inverter Rated
Enclosure ODP
Full Load Efficiency 89.5
Frame 100L
Frequency 60 Hz
HP 3 HP
HP2 3 HP
Insulation Class F
kW 2.2kW
Material Cast Iron
MaAmbient 40°C
Mounting Type B3
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 3
Rated Current 7.8/3.9 & 7/3.5
Rated Voltage 230/460
Rotation Reversible
RPM 1770
Service Factor 1.15
Shaft Diameter 1.102″
Speed 1770 & 1475
Starting Method
