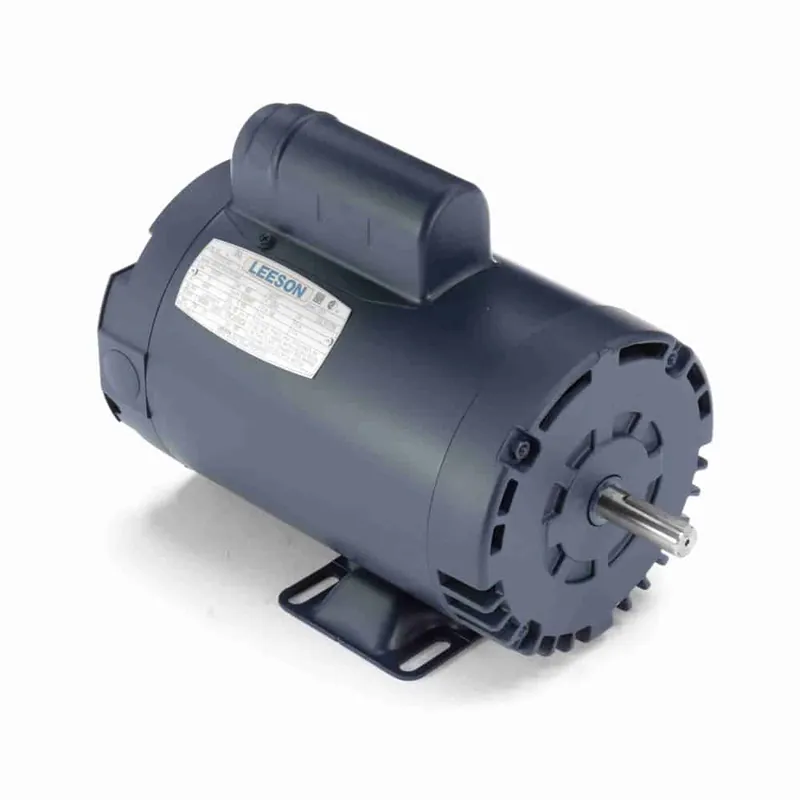

3HP 1PH 56Y 2P DP 3450 230V MOL

Description

Product Information

Brand Leeson
Mfr # 110222.00
Wright’s # LSN 110222.00
Country of Origin USA

Specifications

C Dim 12.28″
Electrical Type Capacitor Start Induction Run
Enclosure DP
Full Load Efficiency 76
Frame 56Y
Frequency 60 Hz
HP 3 HP
HP2 3 HP
Insulation Class F
kW 2.2kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Rigid Base
Number of Poles 2
Number of Speeds 1
Overload Protection Manual
Phase 1
Rated Current 15.0
Rated Voltage 230
Rotation Selective Counterclockwise
RPM 3450
Service Factor 1.15
Shaft Diameter 0.625″
Speed 3450
Starting Method
