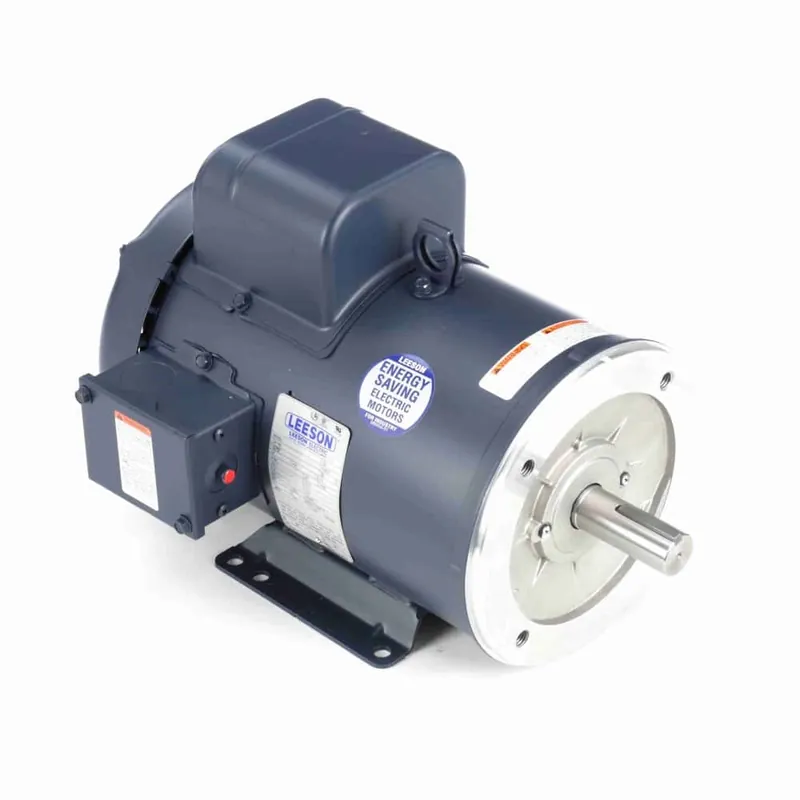

3HP 1PH 184TC 4P TEFC 1740 115/208-230V MOL WB

Description

Product Information

Brand Leeson
Mfr # 131631.00
Wright’s # LSN 131631.00
Country of Origin MEX

Specifications

C Dim 16.47″
Electrical Type Capacitor Start Induction Run
Enclosure TEFC
Full Load Efficiency 77
Frame 184TC
Frequency 60 Hz
HP 3 HP
HP2 3 HP
Insulation Class F
kW 2.2kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Rigid Base
Number of Poles 4
Number of Speeds 1
Overload Protection Manual
Phase 1
Rated Current 33.6/18.0-16.8
Rated Voltage 115/208-230
Rotation Selective Counterclockwise
RPM 1740
Service Factor 1
Shaft Diameter 1.125″
Speed 1740
Starting Method
