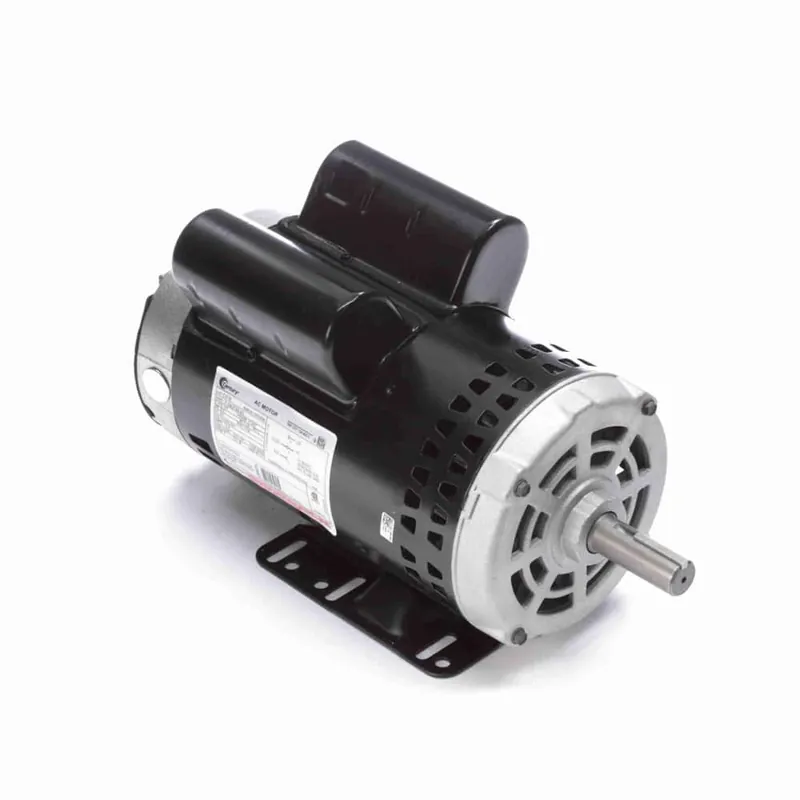

3HP 1PH 145T 4P ODP 1725 208-230V MOL PW

Description

Product Information

Brand Century
Mfr # C218
Wright’s # CEN C218
Country of Origin MEX

Specifications

C Dim 15.06″
Electrical Type Capacitor Start, Capacitor Run, Single Or Dual Voltage
Enclosure ODP
Frame 145T
Frequency 60 Hz
HP 3 HP
HP2 3 HP
Insulation Class B
kW 2.2kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection Manual
Phase 1
Rated Current 13.5
Rated Voltage 208-230
Rotation Reversible Counterclockwise
RPM 1725
Service Factor 1.15
Shaft Diameter 0.875″
Speed 1725
Starting Method
