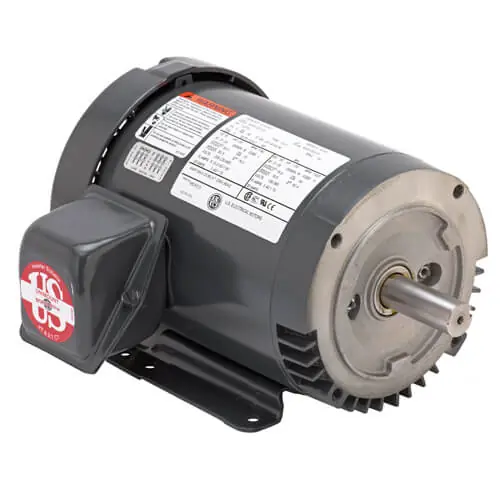

30HP 3PH 286TC 1800 TEFC 208-230/460V

Description

Product Information

Brand US Motors
Mfr # U30P2DC
Wright’s # USM U30P2DC
Country of Origin MEX

Specifications

C Dim 28.4″
Electrical Type Polyphase
Enclosure TEFC
Frame 286TC
Frequency 60/50 Hz
HP 30 HP
HP2 30 HP
Insulation Class F
kW 22.37kW
MaAmbient 40°C
Mounting Type HORZ-FOOTED
Number of Poles 4
Number of Speeds 1
Overload Protection None
Phase 3
Rated Current 78-73/36
Rated Voltage 208-230/460V
RPM 1770
Service Factor 1.25
