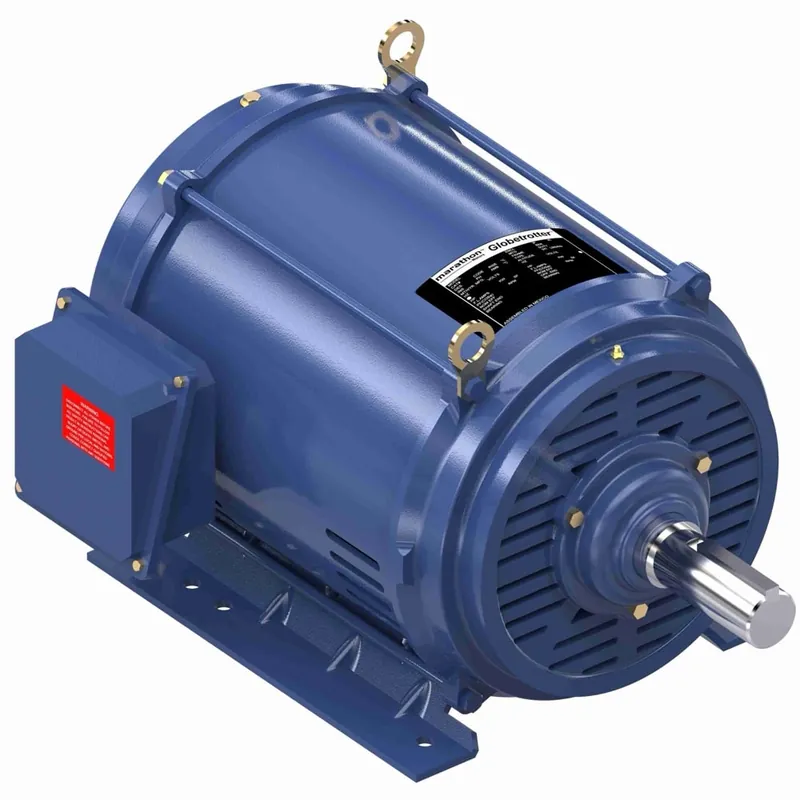

30HP 3PH 286T 4P ODP 1800 230/460V WB

Description

Product Information

Brand Marathon
Sub-Brand Globetrotter®
Mfr # GT0067-P
Wright’s # MAR GT0067-P
Country of Origin MEX

Specifications

Electrical Type Squirrel Cage Inverter Rated
Enclosure ODP
Full Load Efficiency 94.1
Frame 286T
Frequency 60 Hz
HP 30 HP
HP2 30 HP
Insulation Class F
kW 22.4kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Rigid Base
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 3
Rated Current 73/36.5 & 73/36.5
Rated Voltage 230/460
Rotation Reversible
RPM 1775
Service Factor 1.15
Shaft Diameter 1.875″
Speed 1775 & 1475
Starting Method
