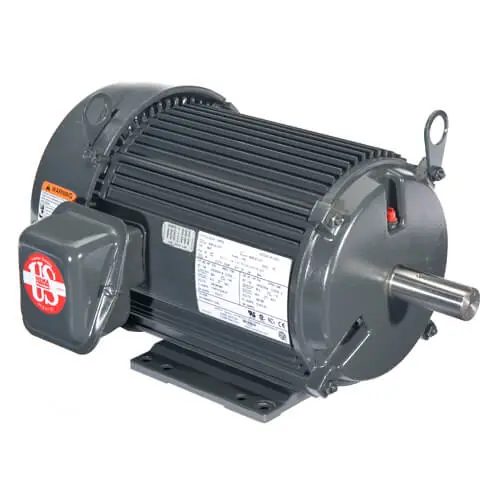

30HP 3PH 286T 1800 TEFC 208-230/460V

Description

Product Information

Brand US Motors
Mfr # U30P2D
Wright’s # USM U30P2D
Country of Origin MEX

Specifications

C Dim 28.7″
Electrical Type Polyphase
Enclosure TEFC
Frame 286T
Frequency 60Hz & 50Hz
HP 30 HP
HP2 30 HP
Insulation Class F
kW 22.37kW
MaAmbient 40°C
Mounting Type HORZ-FOOTED
Number of Poles 4
Number of Speeds 1
Overload Protection None
Phase 3
Rated Current 78-70/35
Rated Voltage 208-230/460V
RPM 1770
Service Factor 1.25
