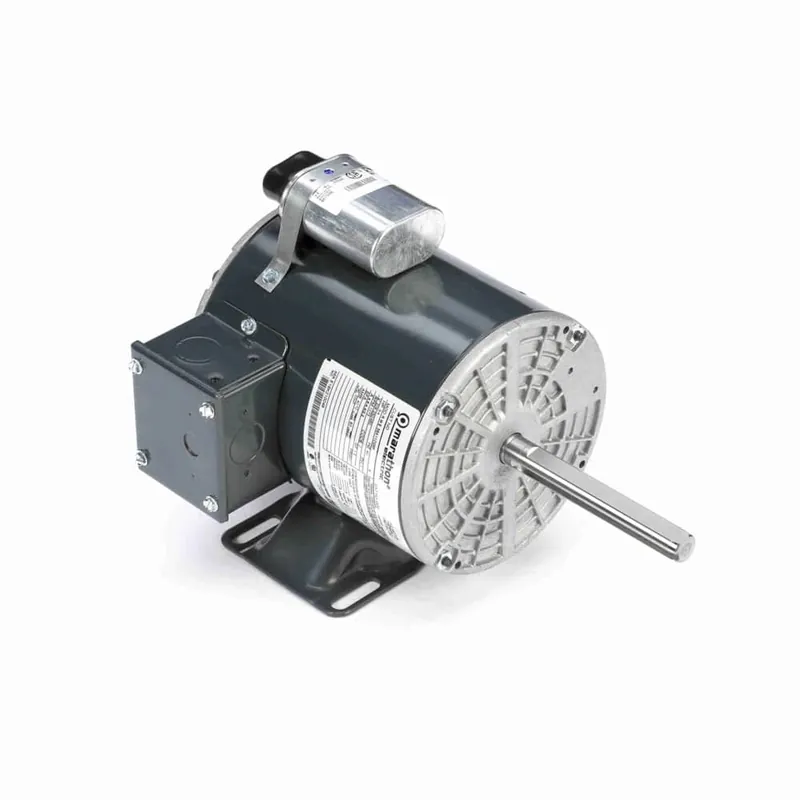

3/4HP PSC 56Y OAO 1075 208-230/460V WB CF

Description

Product Information

Brand Marathon
Mfr # X432
Wright’s # MAR X432
Country of Origin MEX

Specifications

C Dim 11.88″
Electrical Type Permanent Split Capacitor
Enclosure ODP
Full Load Efficiency 67.3
Frame 56Y
Frequency 60 Hz
HP 0.75 HP
HP2 3/4 HP
Insulation Class B
kW 0.56kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Rigid Base
Number of Poles 6
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 4.6-4.4/2.2
Rated Voltage 208-230/460
Rotation Selective Counterclockwise
RPM 1075
Service Factor 1
Shaft Diameter 0.625″
Speed 1075
Starting Method
