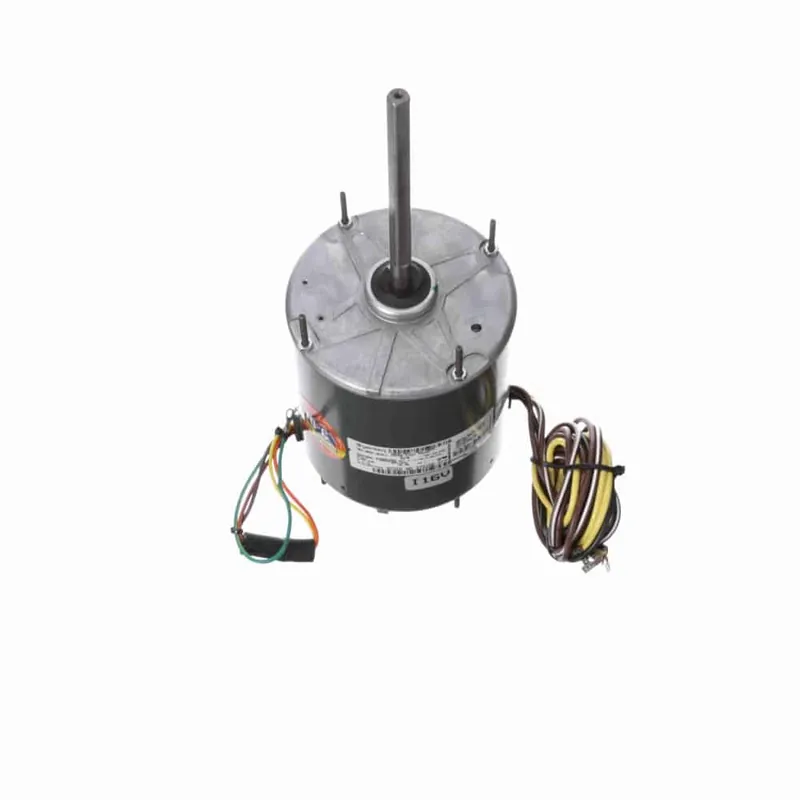

3/4HP PSC 5.6″ TE 1075 REV 208-230V 15uF CF

Description

Product Information

Brand Genteq
Sub-Brand HEAT SHIELD®
Mfr # 3731HS
Wright’s # GEN 3731HS

Specifications

C Dim 13.21″
Electrical Type Permanent Split Capacitor
Enclosure TEAO
Frame 5.6″
Frequency 60 Hz
HP 0.75 HP
HP2 3/4 HP
Insulation Class B
kW 0.56kW
Material Rolled Steel
MaAmbient 70°C
Number of Poles 6
Number of Speeds 1
Overload Protection Thermally Protected
Phase 1
Rated Current 4.10
Rated Voltage 208-230
Rotation Reversible
RPM 1075
Service Factor 1
Shaft Diameter 0.5″
Speed 1075
