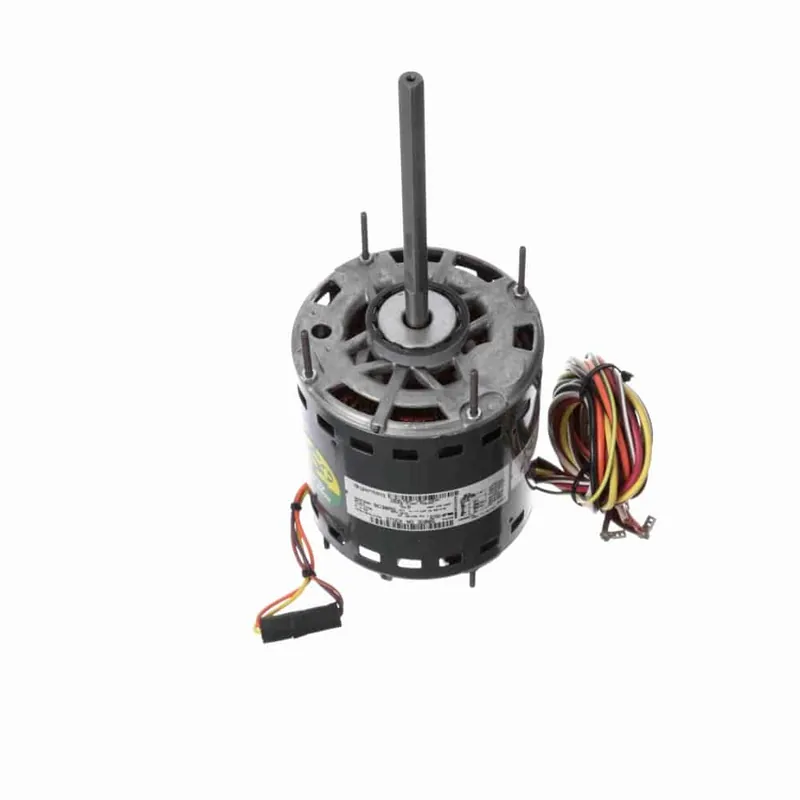

3/4HP PSC 5.6″ OAO 4spd 1075 REV 277/230V 10uF BM

Description

Product Information

Brand Genteq
Mfr # 3D005
Wright’s # GEN 3D005

Specifications

C Dim 13.39″
Electrical Type Permanent Split Capacitor
Enclosure OAO
Frame 5.6″
Frequency 60 Hz
HP 0.75 HP
HP2 3/4 HP
Insulation Class B
kW 0.56kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 6
Number of Speeds 4
Overload Protection Thermally Protected
Phase 1
Rated Current 3.60
Rated Voltage 277/230
Rotation Reversible
RPM 1075
Service Factor 1
Shaft Diameter 0.5″
Speed 1075
